BB15AH Series
Manufacturer: NKK Switches
Beta
⌘K
PUSHBUTTON SWITCH, BB SERIES, SPDT, ON-(ON), ROUND, BLACK
| Part | Electrical Life | Mechanical Life | Features | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Mounting Type | Circuit | Voltage Rating - AC | Actuator Marking | Actuator Type | Type | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

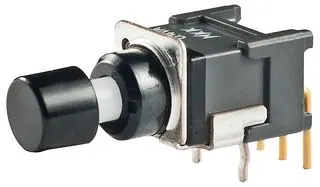

 NKK Switches | 50000 Cycles | 50000 Cycles | Antistatic | 28 V | 0.4 VA | 85 °C | -30 ░C | Black | Right Angle Through Hole | SPDT | 28 V | No Marking | Button Round | Standard | On-Mom | PC Pin |

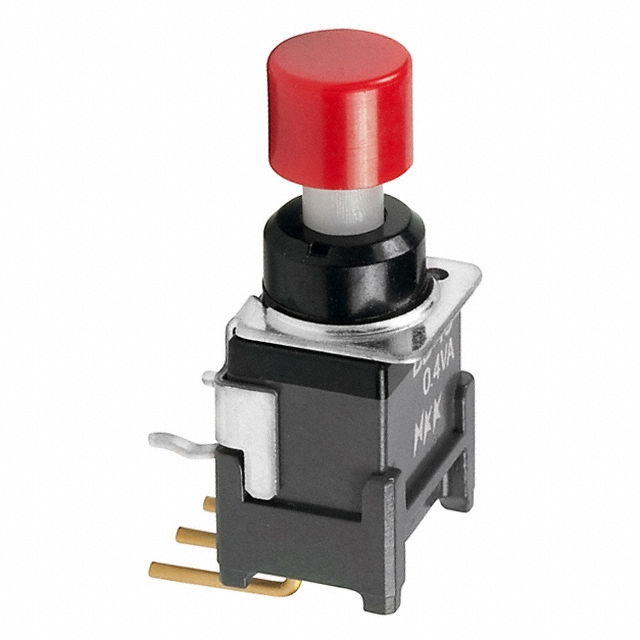

 NKK Switches | 50000 Cycles | 50000 Cycles | Antistatic | 28 V | 0.4 VA | 85 °C | -30 ░C | Red | Right Angle Through Hole | SPDT | 28 V | No Marking | Button Round | Standard | On-Mom | PC Pin |
 NKK Switches | 50000 Cycles | 50000 Cycles | Antistatic | 28 V | 0.4 VA | 85 °C | -30 ░C | White | Right Angle Through Hole | SPDT | 28 V | No Marking | Button Round | Standard | On-Mom | PC Pin |
