541801 Series

Catalog

HOOK-UP SOLID 18AWG VIOLET 1000'

Part	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Voltage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Length	Length	Conductor Material	Jacket (Insulation) Material	Cable Type	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 541801 VI001	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Violet
ALPHA WIRE 541801 RD001	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Red
ALPHA WIRE 541801 BK005	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN			Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Black	30.5 m	100 ft

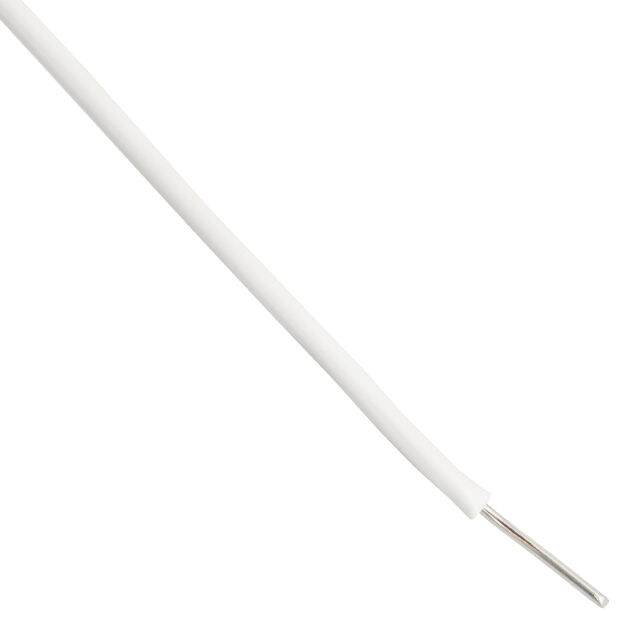

ALPHA WIRE 541801 WH001	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up
ALPHA WIRE 541801 BR001	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Brown
ALPHA WIRE 541801 GR005	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN			Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Green	30.5 m	100 ft
ALPHA WIRE 541801 RD002	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN			Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Red	152.4 m	500 '
ALPHA WIRE 541801 BL002	90 °C	-40 °C	Solid	600 V	18 AWG	2.01 mm	0.079 in	0.016 in	0.41 mm	UL Style TFN			Copper Bare	Poly-Vinyl Chloride (PVC)	Hook-Up	Blue	152.4 m	500 '
