400UDP1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 0.4VA 20V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Type | Voltage Rating - AC | Features | Switch Function | Color - Actuator/Cap | Current Rating (Amps) | Termination Style | Mounting Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

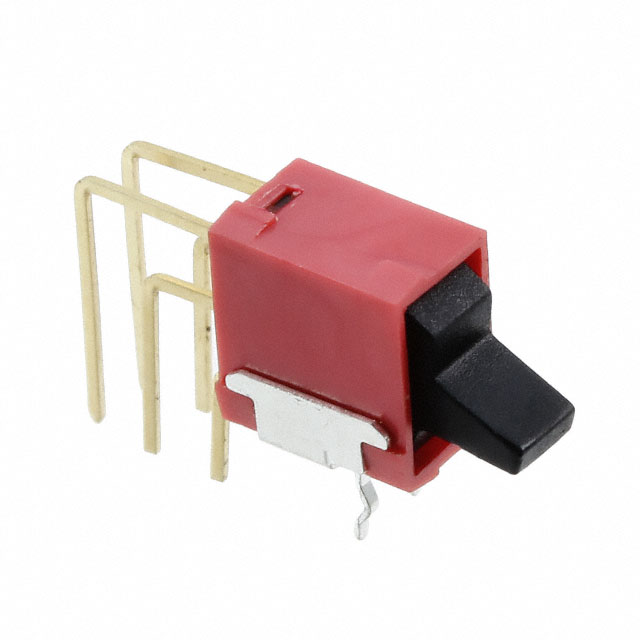

 E-Switch | 50000 Cycles | 50000 Cycles | 20 V | 85 °C | -30 ░C | DPDT | Paddle | 20 V | Epoxy Sealed Terminals | On-On | Black | 0.4 VA | PC Pin | Right Angle Through Hole | No Marking |
 E-Switch | 50000 Cycles | 50000 Cycles | 20 V | 85 °C | -30 ░C | DPDT | Paddle | 20 V | Epoxy Sealed Terminals | On-On | Black | 0.4 VA | PC Pin | Right Angle Through Hole Vertical | No Marking |

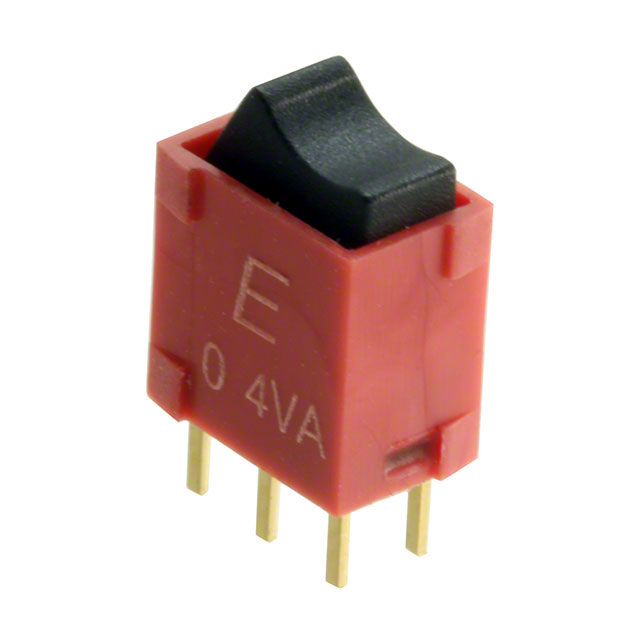

 E-Switch | 50000 Cycles | 50000 Cycles | 20 V | 85 °C | -30 ░C | DPDT | Concave (Curved) | 20 V | Epoxy Sealed Terminals | On-On | Black | 0.4 VA | PC Pin | Through Hole | No Marking |
