F92ERB Series
Manufacturer: Panduit Corp
Beta
⌘K

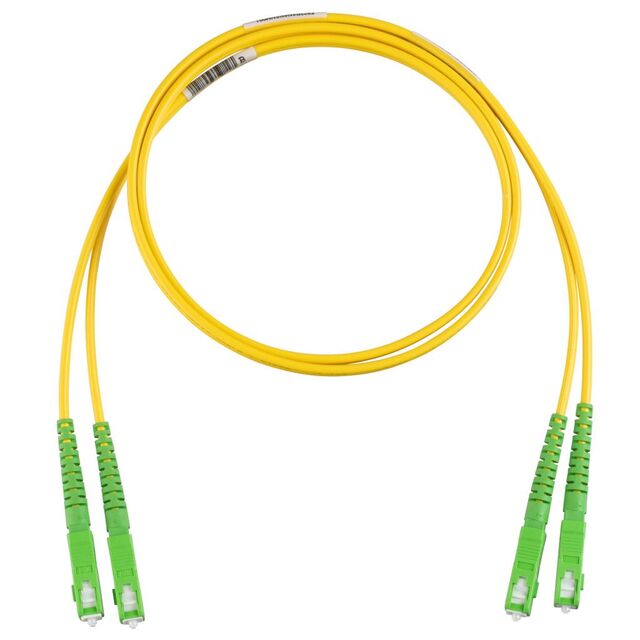

CABLE ASSEMBLY FIBER OPTIC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Features | Length - Overall [x] | Length - Overall [x] | Cable Type | Bend Radius [radius] | Return Loss | Type | Cable Diameter [diameter] | Cable Diameter [diameter] | 1st Connector | 2nd Connector | Ratings | Color - Cable | Color - Connectors | Fiber Type | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | 10 m | 32.8 ft | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC Duplex | OFNR | |||||
Panduit Corp | -20 C | 70 °C | 0.3 dB | Riser Zipcord | 33 m | 108.3 ' | Bend Insensitive Fiber (BIF) | 16 mm | 0.65 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | Yellow | Green | 9/125 | ||
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | 26 m | 85.3 ft | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | |||||
Panduit Corp | -20 C | 70 °C | 0.3 dB | Riser Zipcord | 39 m | 128 ft | Bend Insensitive Fiber (BIF) | 16 mm | 0.65 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | Yellow | Green | 9/125 | ||
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | 3.1 m | 10 ft | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | |||||
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | 8.5 m | 28 ft | |||||
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | 5.8 m | 19 ft | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | |||||
Panduit Corp | -20 C | 70 °C | 0.3 dB | Riser Zipcord | Bend Insensitive Fiber (BIF) | 16 mm | 0.65 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR | Yellow | Green | 9/125 | 21 m | 68.9 ft | ||
 Panduit Corp | -20 C | 70 °C | 0.3 dB | Riser Zipcord | 1 m | 3.3 ft | Bend Insensitive Fiber (BIF) | 16 mm | 0.65 dB | OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC Duplex | OFNR | Yellow | Green | 9/125 | ||
Panduit Corp | -10 °C | 60 °C | 0.25 dB | Riser Zipcord | 19 m | 62.3 ft | Bend Insensitive Fiber (BIF) | 16 mm | 55 dB | Duplex OS2 Singlemode | 0.06 in | 1.6 mm | LC/APC | LC/APC | OFNR |
