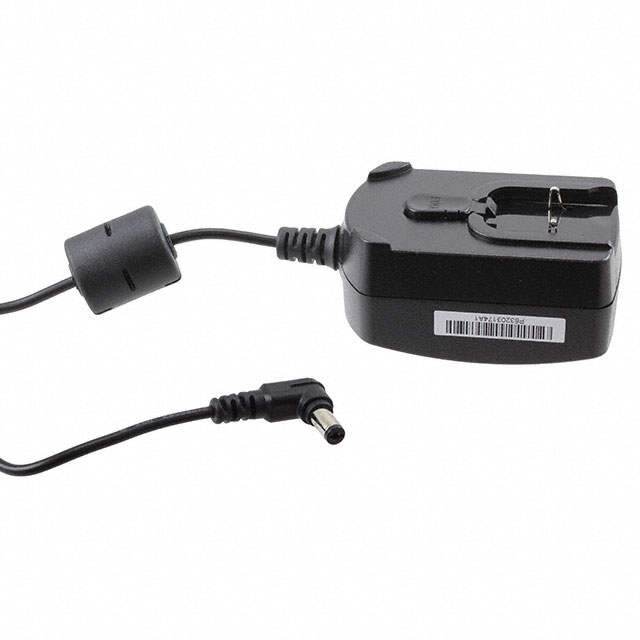

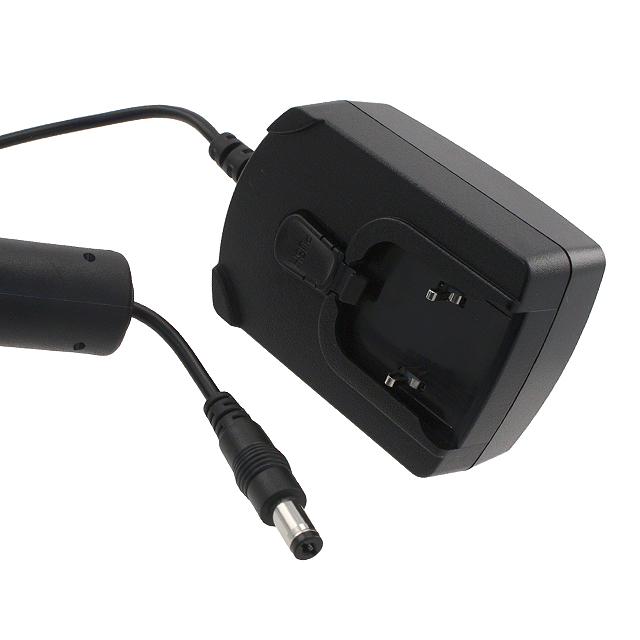

PSAA20R Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 20W

Part	Weight	Weight	Output Connector [diameter]	Output Connector	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Current - Output (Max) [Max]	Region Utilized	Applications	Efficiency	Standard Number	No Load Power Consumption	Polarization	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Input Connector	Form	Approval Agency	Power (Watts)	Cord Length	Cord Length	Operating Temperature [Max]	Voltage - Output
Phihong USA PSAA20R-120L6-R-CR1	180.08 g	0.397 lb	2.1 mm 5.5 mm	Barrel Plug R/A	10 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	1.67 A	International	ITE (Commercial)	Level VI	60950-1	10 mW	Positive Center	2.82 in	39.1 mm	1.54 in	50 mm	71.7 mm	1.97 in	Multi-Blade	Wall Mount	AS/NZS BSMI cULus IEC PSE	20 W	1.5 m	59 in	40 °C	12 V
Phihong USA PSAA20R-050L6-R-CR1	180.08 g	0.397 lb	2.1 mm 5.5 mm	Barrel Plug R/A	10 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	4 A	International	ITE (Commercial)	Level VI	60950-1 62368-1 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	10 mW	Positive Center	2.82 in	39.1 mm	1.54 in	50 mm	71.7 mm	1.97 in	Multi-Blade	Wall Mount	AS/NZS CCC cULus IEC	20 W	1.5 m	59 in	40 °C	5 V
Phihong USA PSAA20R-050L6	180.08 g	0.397 lb	2.1 mm 5.5 mm	Barrel Plug	9.5 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	4 A	International	ITE (Commercial)	Level VI		10 mW	Positive Center	2.82 in	39.1 mm	1.54 in	50 mm	71.7 mm	1.97 in	Multi-Blade	Wall Mount	CB CE cULus	20 W	1.5 m	59 in	40 °C	5 V
Phihong USA PSAA20R-240L6-R-CR1	180.08 g	0.397 lb	2.1 mm 5.5 mm	Barrel Plug R/A	10 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	830 mA	International	ITE (Commercial)	Level VI	60950-1	10 mW	Positive Center	2.82 in	39.1 mm	1.54 in	50 mm	71.7 mm	1.97 in	Multi-Blade	Wall Mount	AS/NZS cULus IEC	20 W	1.5 m	59 in	40 °C	24 V
