SFW28R Series

Catalog

CONN CIC TOP 28POS 1MM R/A

Part	Pitch	Pitch	Termination	Number of Positions	Housing Material	Mounting Type	Height Above Board [z]	Height Above Board [z]	Locking Feature	Connector/Contact Type	Cable End Type	Flat Flex Type	FFC, FCB Thickness	Housing Color	Actuator Color	Mating Cycles	Contact Finish	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Voltage Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW28R-6STE1	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Top	Tapered	CIC	0.3 mm

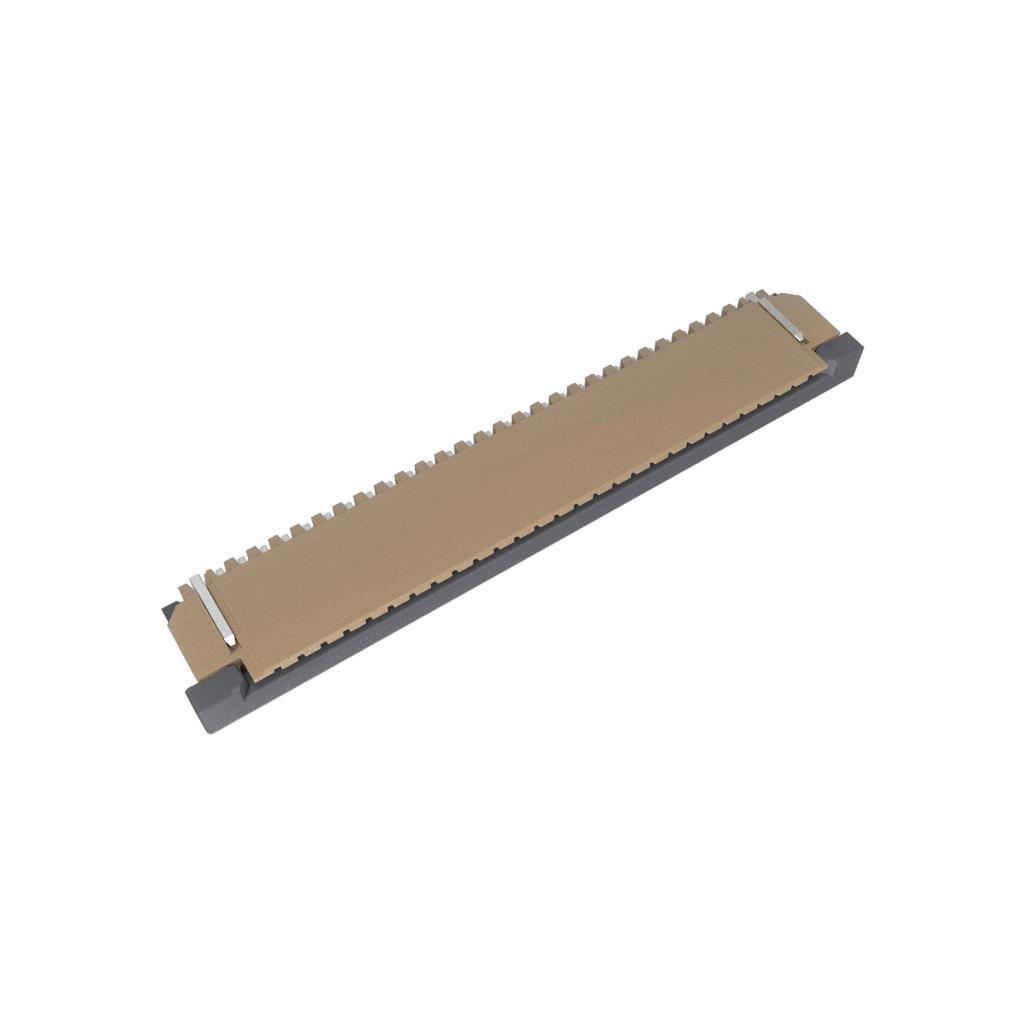

Amphenol ICC (FCI) SFW28R-2STE1LF	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Top	Straight Tapered	FFC FPC	0.3 mm	Brown	Black	20	Tin	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V
Amphenol ICC (FCI) SFW28R-2STAE1LF	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Top	Straight Tapered	FPC	0.3 mm	Brown	Black	20	Gold	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V
Amphenol ICC (FCI) SFW28R-4STE1LF	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Top	Notched Tapered	FFC FPC		Black	Brown	20	Tin	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW28R-3STE1	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Bottom	Notched	FFC FPC		Black	Brown		Tin Alloy	Phosphor Bronze	UL94 V-0			Polyphenylene Sulfide (PPS) Glass Filled		0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW28R-6STE1LF	1 mm	0.039 in	Kinked Pin	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm		Contacts Top	Straight or Tapered	CIC	0.3 mm	Brown		10	Tin	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V
Amphenol ICC (FCI) SFW28R-1STAE1LF	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Bottom	Straight Tapered	FPC		Brown	Black	20	Gold	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW28R-1STGE1LF	1 mm	0.039 in	Solder	28	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	0.106 in	2.7 mm	Slide Lock	Contacts Bottom	Tapered	FPC	0.33 mm	Brown	Black	20	Gold	Phosphor Bronze	UL94 V-0	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	100 V
