ESU107M Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, 100 ΜF, 450 V, ± 20%, PC PIN, 12000 HOURS @ 105°C, POLAR

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Ripple Current @ High Frequency	Applications	Package / Case	Tolerance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Polarization	Mounting Type	Size / Dimension
KEMET ESU107M450AN9AA	0.709 in	18 mm	100 µF	12000 Hrs	2.047 in	52 mm	105 ░C	-25 °C	450 V	1.56 A	General Purpose	Can Radial	20 %	780 mA	0.295 in	7.5 mm	Polar	Through Hole

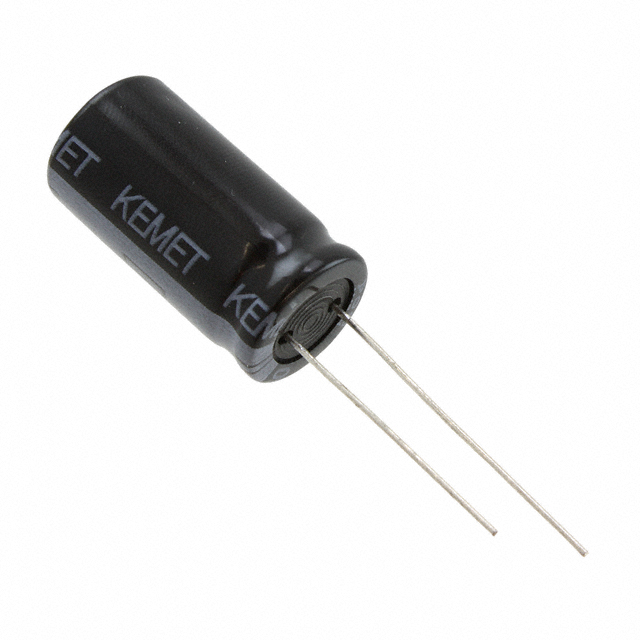

KEMET ESU107M160AL4AA	0.512 in		100 µF	12000 Hrs	1.063 in	27 mm	105 ░C	-25 °C	160 V	970 mA	General Purpose	Can Radial	20 %	485 mA	0.197 "	5 mm	Polar	Through Hole	13 mm
