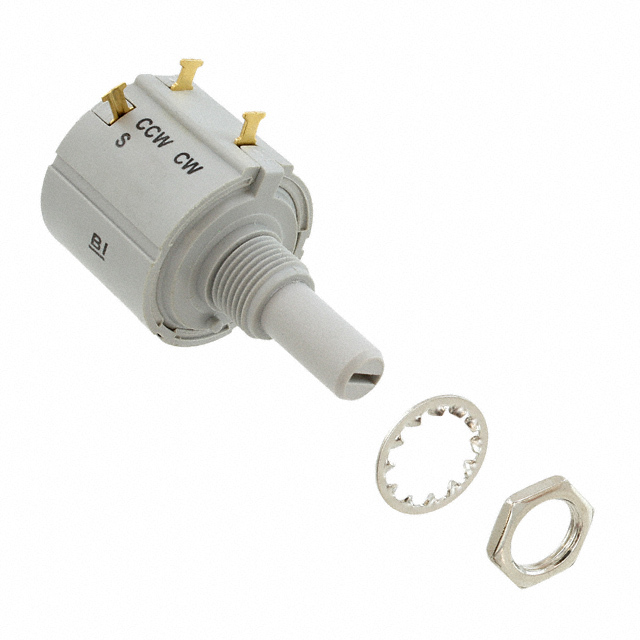

7276R Series

Catalog

POT 100K OHM 2W WIREWOUND LINEAR

Part	Termination Style	Adjustment Type	Temperature Coefficient	Resistance (Ohms)	Bushing Thread	Actuator Length [x]	Actuator Length [x]	Tolerance	Mounting Type	Resistive Material	Actuator Type	Number of Gangs	Power (Watts)	Built in Switch	Rotation	Number of Turns	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body [diameter]	Taper	Resistance (Ohms)	Resistance (Ohms) [custom]
TT Electronics/BI 7276R100KL.25	Solder Turret	User Defined	20 ppm/°C	100k	3/8-32	20.6 mm	0.811 in	5 %	Panel Mount	Wirewound	Slotted	1	2 W	None	3600 °	10	0.249 in	6.33 mm	22.2 mm	0.874 "	Linear
TT Electronics/BI 7276R1KL.25	Solder Turret	User Defined	20 ppm/°C	1k	3/8-32	20.6 mm	0.811 in	5 %	Panel Mount	Wirewound	Slotted	1	2 W	None	3600 °	10	0.249 in	6.32 mm	22.2 mm	0.874 "	Linear
TT Electronics/BI 7276R5KL.25	Solder Turret	User Defined	20 ppm/°C		3/8-32	20.6 mm	0.811 in	5 %	Panel Mount	Wirewound	Slotted	1	2 W	None	3600 °	10	0.249 in	6.32 mm	22.2 mm	0.874 "	Linear	5 kOhms
TT Electronics/BI 7276R100L.25	Solder Turret	User Defined	20 ppm/°C		3/8-32	20.6 mm	0.811 in	5 %	Panel Mount	Wirewound	Slotted	1	2 W	None	3600 °	10	0.249 in	6.33 mm	22.2 mm	0.874 "	Linear		100 Ohms
