305-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 12POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Color	Number of Positions/Bay/Row	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Gender	Number of Positions	Mounting Type	Features	Number of Rows [custom]	Termination	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

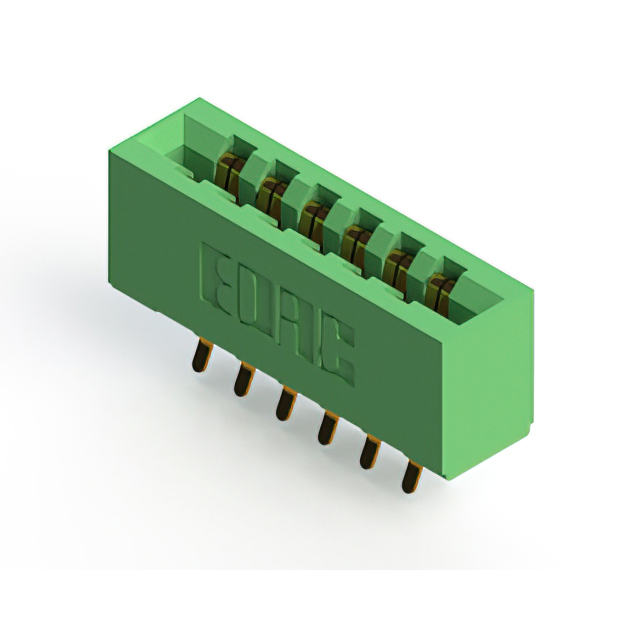

EDAC Inc. 305-012-556-201	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Board Edge Straddle Mount	Card Extender	2	Solder	Semi Bellows

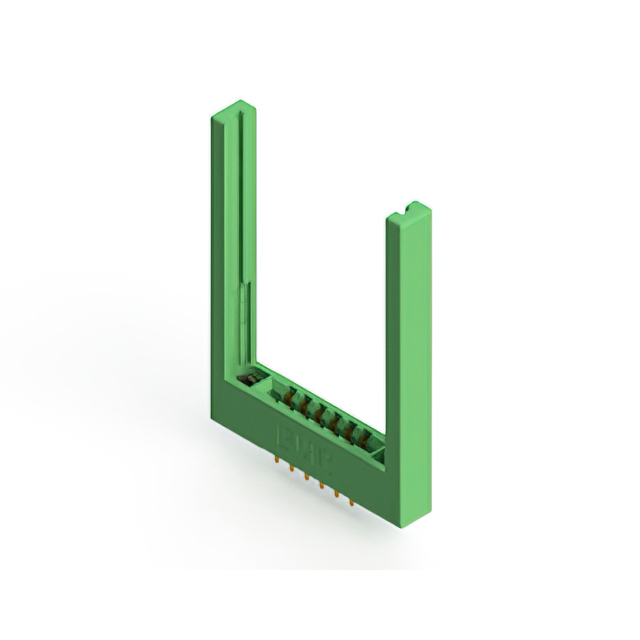

EDAC Inc. 305-012-521-268	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Panel Mount Through Hole		2	Solder	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening

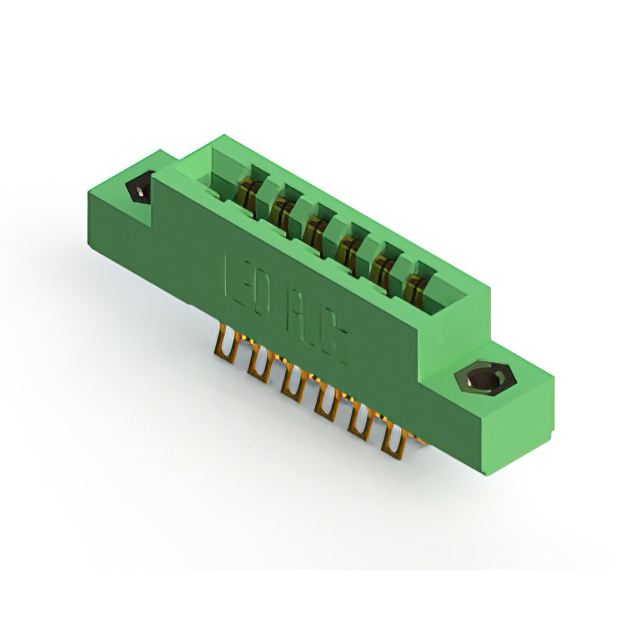

EDAC Inc. 305-012-555-207	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Board Edge Straddle Mount	Card Extender	2	Solder	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening

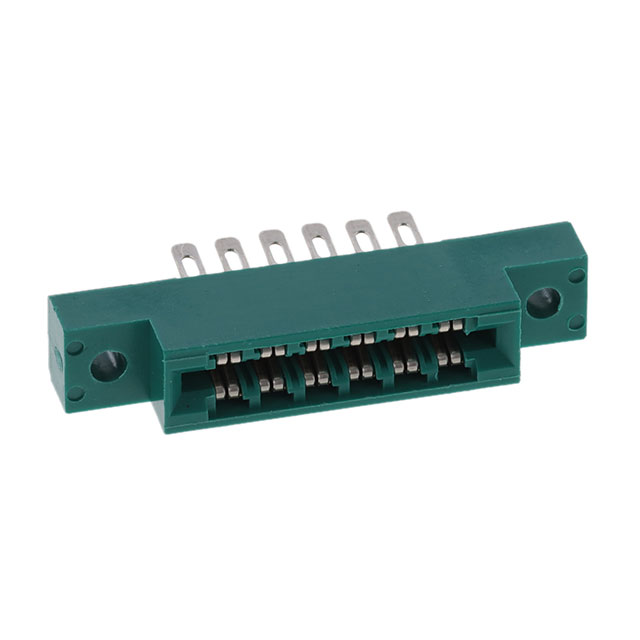

EDAC Inc. 305-012-500-202	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Panel Mount		2	Solder Eyelet(s)	Semi Bellows	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

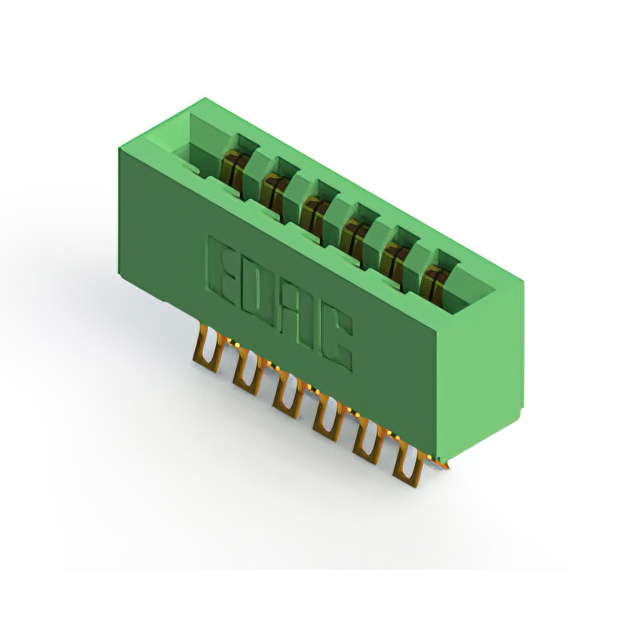

EDAC Inc. 305-012-555-201	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Board Edge Straddle Mount	Card Extender	2	Solder	Semi Bellows

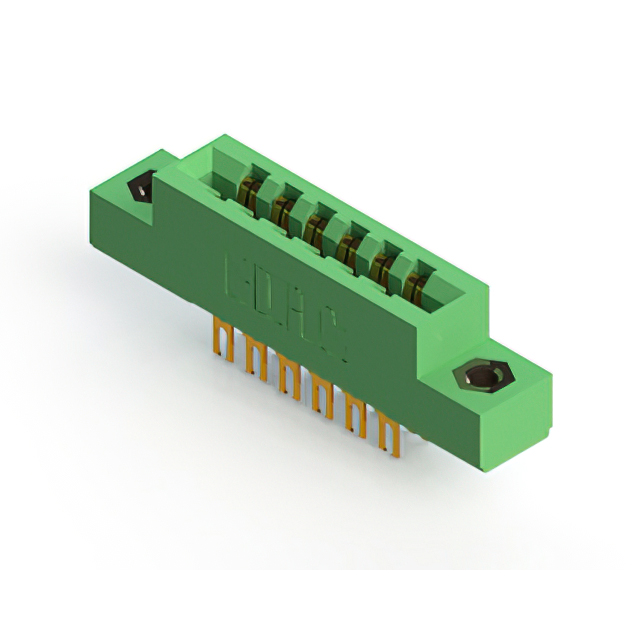

EDAC Inc. 305-012-500-207	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Panel Mount		2	Solder Eyelet(s)	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening

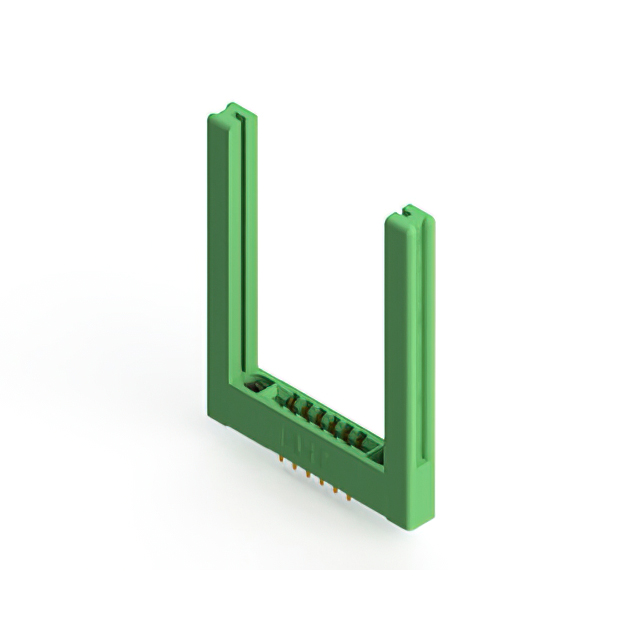

EDAC Inc. 305-012-521-258	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Panel Mount Through Hole		2	Solder	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening

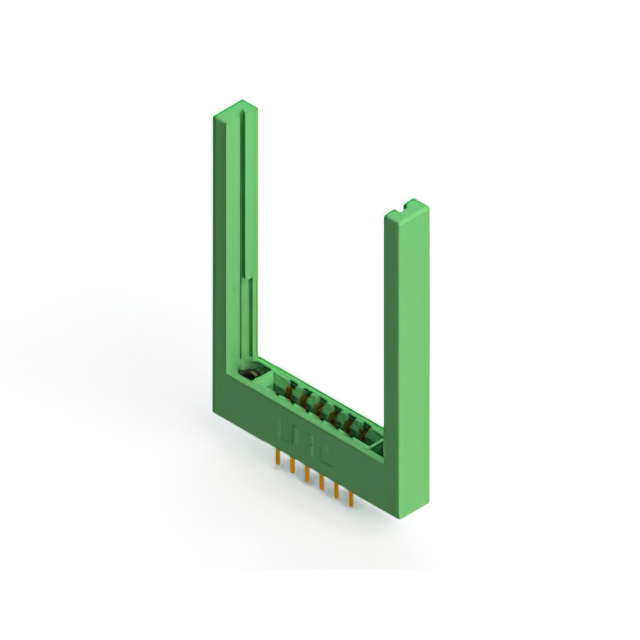

EDAC Inc. 305-012-520-568	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Panel Mount Through Hole		2	Solder	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-012-556-558	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Board Edge Straddle Mount	Card Extender Card Guides	2	Solder	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-012-555-203	Polyester Thermoplastic	2	Green	6	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	-40 C	105 ░C	Dual	0.25 Ám	10 Áin	3.96 mm	0.156 in	Female	12	Board Edge Straddle Mount	Card Extender	2	Solder	Semi Bellows	Floating Bobbin Flush Mount	2.95 mm	0.116 "
