EGA10 Series
Manufacturer: TE Intercontec
Beta
⌘K

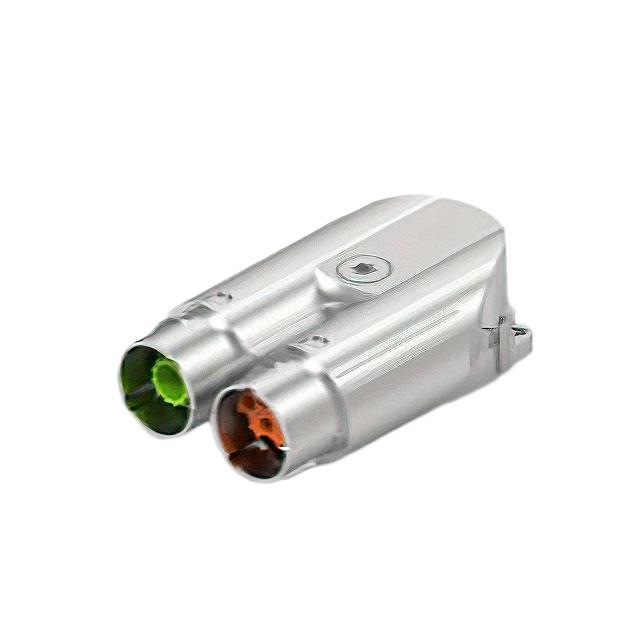

CONN RCPT HSG MALE 21P PNL MT RA
| Part | Orientation | Connector Type | Includes | Shell Finish | Shell Material | Features | Material Flammability Rating | Contact Shape | Insert Material | Mounting Feature | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Type | Ingress Protection | Note | Shielding | Mounting Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Keyed | Receptacle Housing | 1 Backshell 1 Connector 1 O-Ring | Nickel | Zinc Die Cast | Backshell Rotatable | UL94 V-0 | Circular | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Flange | Silver | -20 ░C | 130 °C | Bayonet Lock | For Male Pins | IP66 IP67 | Contacts Not Included | Unshielded | Panel Mount Right Angle | 21 | |||
TE Intercontec | Keyed | Receptacle Housing | 1 Backshell 1 Connector 1 O-Ring | Nickel | Zinc Die Cast | Backshell Rotatable | UL94 V-0 | Circular | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Flange | Silver | -20 ░C | 130 °C | Bayonet Lock | For Male Pins | IP66 IP67 | Contacts Not Included | Unshielded | Panel Mount Right Angle | 1 | 3 | 20 |
