31894 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

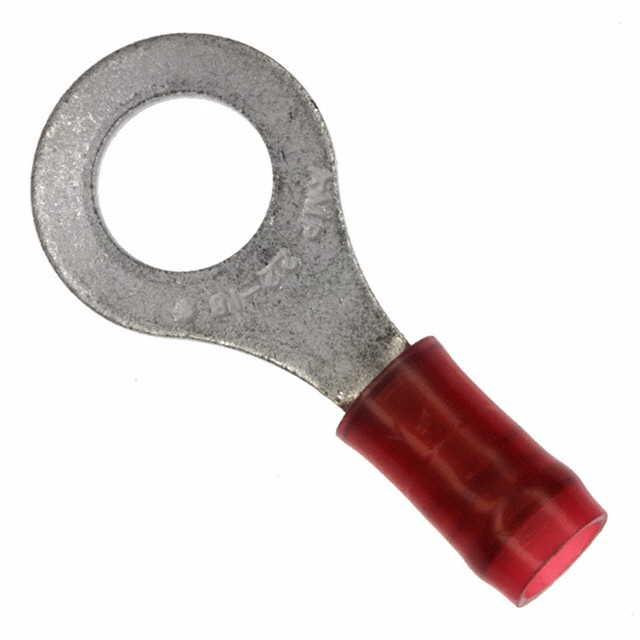

CONN RING CIRC 16-22AWG #1/4
| Part | Insulation | Contact Material | Thickness | Thickness | Contact Finish | Features | Stud/Tab Size | Color | Mounting Type | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulated | Copper | 0.031 in | 0.79 mm | Tin | Serrated Termination | 0.25 Stud | Red | Free Hanging (In-Line) | Nylon Polyamide (PA) | 11.91 mm | 0.469 in | Circular | Crimp | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 22 AWG | 16 AWG |
