SCS8RT93 Series
Manufacturer: Samsung Semiconductor, Inc.
Beta
⌘K

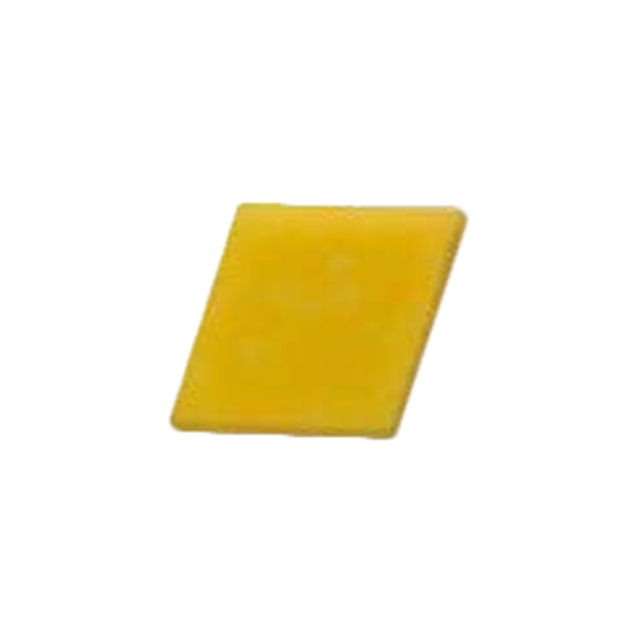

LED LM102A COOL WHITE 5000K SMD
| Part | Thermal Resistance of Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Test | CRI (Color Rendering Index) | Package / Case | Package / Case | Current - Max [Max] | Flux @ 85°C, Current - Test | Flux @ 85°C, Current - Test [Min] | Flux @ 85°C, Current - Test [Max] | Viewing Angle | Color | Supplier Device Package | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Mounting Type | CCT (K) | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samsung Semiconductor, Inc. | 2 °C/W | 0.42 mm | 0.017 " | 150 mA | 80 | 1313 | 0505 | 250 mA | 119 lm | 111 lm | 127 lm | 145 ° | Cool White | SMD | 134 lm/W | 1.34 mm | 1.34 mm | 0.053 in | 0.053 " | 5.9 V | Surface Mount | 5-Step MacAdam Ellipse | 5000 K |
