902-0067 Series
Manufacturer: ROBOTIS
Beta
⌘K

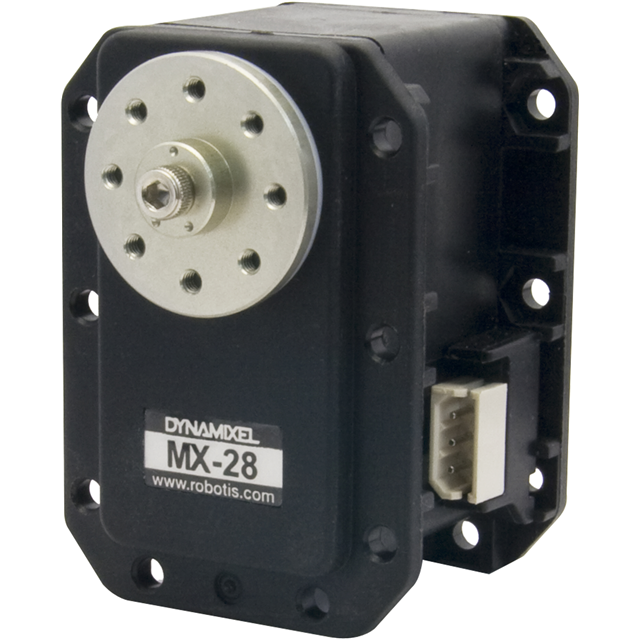

MX-28T DYNAMIXEL SERVO
| Part | Function | RPM | Gear Reduction Ratio | Termination Style | Type | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Features | Motor Type | Weight [custom] | Weight [custom] | Encoder Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | Servomotor | 55 RPM | 193 | Connector | DC Motor | 12 VDC | 1.992 " 50.6 mm | 1.397 in 35.5 mm | 2500 mNm | 354 oz-in | Integrated Controller | Brushed | 0.159 lb | 72 g | Absolute | 80 °C | -5 °C |
