Multilock Connector System Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN SOCKET 16-18AWG CRIMP TIN
| Part | Contact Termination | Pin or Socket | Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Note | Color | Insulation Material | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Row Spacing | Row Spacing | Number of Rows [custom] | Features | Fastening Type | Contact Type | Applications | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Termination | Insulation Color | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Rows | Shrouding | Style | Current Rating (Amps) | Number of Positions Loaded | Contact Shape | Pitch | Pitch | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Crimp | Socket | Stamped | Tin | 16 AWG | 18 AWG | |||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Contacts Not Included | Black | Glass Filled Nylon 6/6 Polyamide (PA66) | 12 | Free Hanging (In-Line) | -30 ░C | 105 ░C | Receptacle | 5.9 mm | 0.232 in | 2 | Right Angle Cable Exit | Latch Holder | Female Socket | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) | 6 | Right Angle Through Hole | -30 ░C | 105 ░C | Mounting Flange | Locking Ramp | Tab | Automotive General Purpose | 11.5 mm | 0.453 in | 3.7 mm | 0.146 " | Brass | Solder | Black | Tin | 2.5 mm | 0.098 in | 1 | Shrouded - 4 Wall | Board to Cable/Wire | Varies by Wire Gauge | All | Rectangular | ||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Contacts Not Included | Natural | Polybutylene Terephthalate (PBT) | 20 | Free Hanging (In-Line) | -30 ░C | 105 ░C | Plug | 5.9 mm | 0.232 in | 2 | Latch Lock | Female Socket | |||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Contacts Not Included | Gray | Polybutylene Terephthalate (PBT) | 16 | Free Hanging (In-Line) | -30 ░C | 105 ░C | Plug | 5.2 mm | 0.205 in | 2 | Latch Holder | Female Socket | 0.118 in | 3 mm | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) | 6 | Right Angle Through Hole | -30 ░C | 105 ░C | Mounting Flange | Latch Holder | Tab | 12.5 mm | 0.492 in | Brass | Solder | Black | Tin | 3.5 mm | 0.138 in | 1 | Shrouded - 4 Wall | Board to Cable/Wire | Varies by Wire Gauge | All | Rectangular | |||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Contacts Not Included | White | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | -30 ░C | 105 ░C | Plug | Latch Holder | Female Socket | 1 | 0.138 " | 3.5 mm | ||||||||||||||||||||||||||||

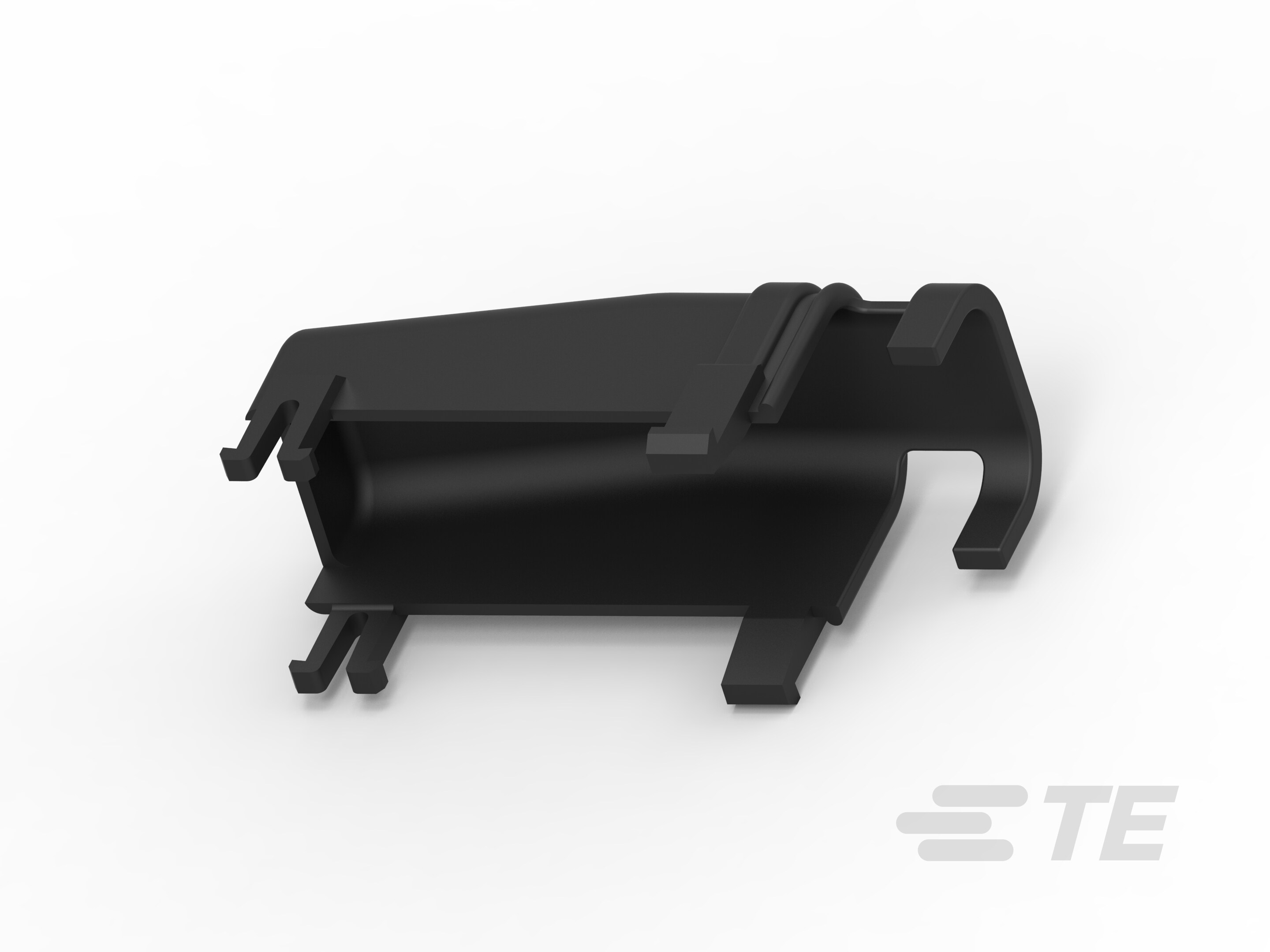

 TE Connectivity AMP Connectors | 26 | Cap (Cover) | Multi-Lock Series | ||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | Tin | 16 AWG | 20 AWG |
