3268 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN TERM RECT TONG 500 MCM #3/8

Part	Insulation	Width - Outer Edges	Width - Outer Edges	Wire Gauge	Wire Gauge	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Mounting Type	Terminal Style	Termination	Stud/Tab Size	Contact Material	Tab Thickness	Tab Thickness	Contact Finish	Length - Overall [x]	Length - Overall	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Barrel ID	Material - Insulation	Color	Features	Stud/Tab Size	Thickness	Thickness	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Termination	Length - Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
TE Connectivity Raychem Cable Protection 326808	Non-Insulated	45.72 mm	1.8 "	500 kcmil	500 kcmil	0.981 in	24.92 mm	9.91 mm	0.39 in	Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	3/8 Stud	Copper	5.08 mm	0.2 in	Tin	4.05 in	102.9 mm	Rectangular Tongue
TE Connectivity Raychem Cable Protection 326803	Non-Insulated			4 aught AWG		0.648 in	16.46 mm	9.91 mm	0.39 in	Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	3/8 Stud	Copper	3.3 mm	0.13 in	Tin	3.46 in		Standard	30.23 mm	1.19 in	20.5 mm	0.807 in	87.88 mm

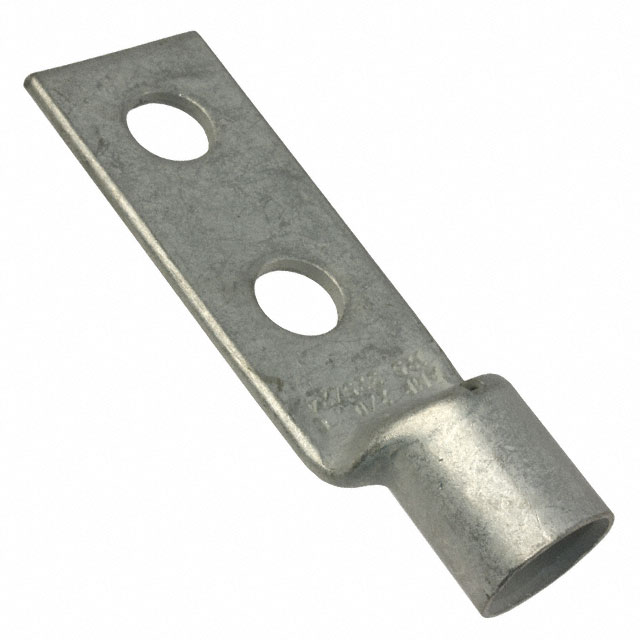

TE Connectivity Raychem Cable Protection 326801	Non-Insulated					0.513 in		9.91 mm	0.39 in	Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	3/8 Stud	Copper	2.79 mm	0.11 in	Tin	3.12 in		Standard			16.41 mm	0.646 in	79.25 mm	24.64 mm	0.97 "	13.03 mm
TE Connectivity Raychem Cable Protection 326819	Insulated									Free Hanging (In-Line)		Crimp		Copper			Tin	0.809 in		Circular	7.14 mm	0.281 in			20.55 mm				Poly-Vinyl Chloride (PVC)	Black	Serrated Termination	6 Stud	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm	22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 326896	Insulated			2 AWG						Free Hanging (In-Line)		Crimp		Copper			Tin	2.13 in		Circular	18.06 mm	0.711 "			54.1 mm				Vinyl	Red	Serrated Termination	0.3125 Stud	0.057 in	1.45 mm							0.505 in	12.83 mm

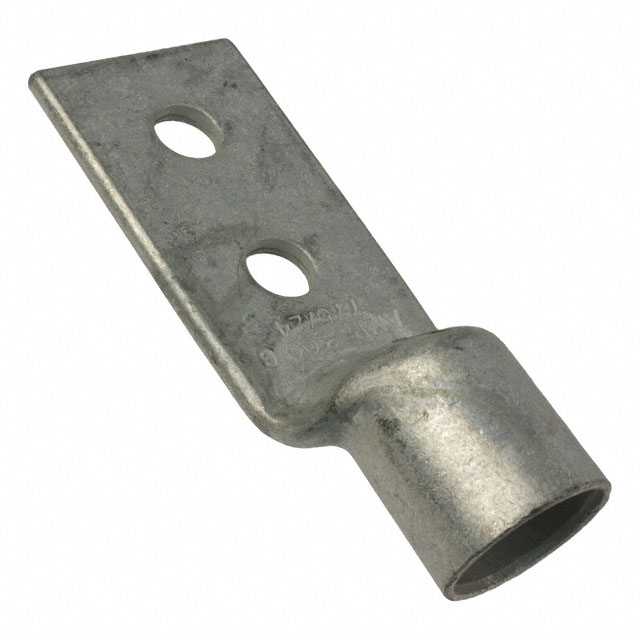

TE Connectivity Raychem Cable Protection 326805	Non-Insulated			300 MCM (kcmil)		0.758 "	19.25 mm	9.91 mm	0.39 in	Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	3/8 Stud	Copper	4.06 mm	0.16 in	Tin	3.7 in		Standard			24.16 mm	0.951 in	93.98 mm

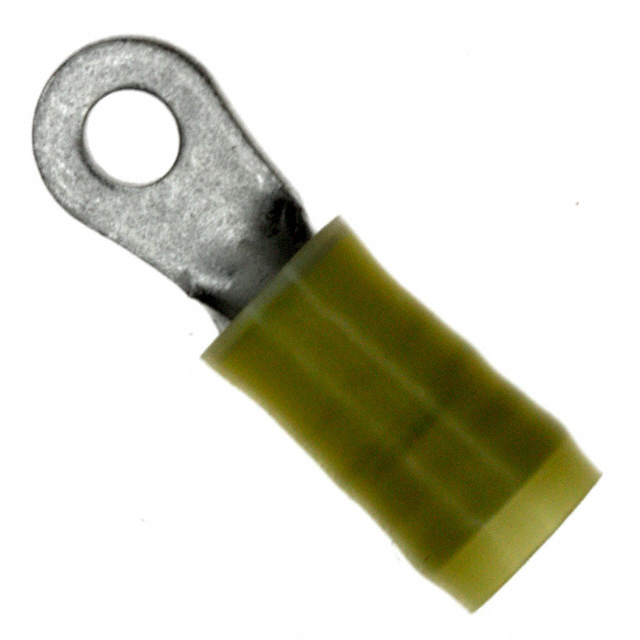

TE Connectivity Raychem Cable Protection 326886	Insulated									Free Hanging (In-Line)		Crimp		Copper			Tin	1.052 in		Circular	7.92 mm	0.312 in			26.72 mm				Nylon Polyamide (PA)	Yellow	Serrated Termination	6 Stud	0.04 in	1.02 mm					12 AWG	10 AWG			0.15 "	3.81 mm	0.23 in	5.84 mm

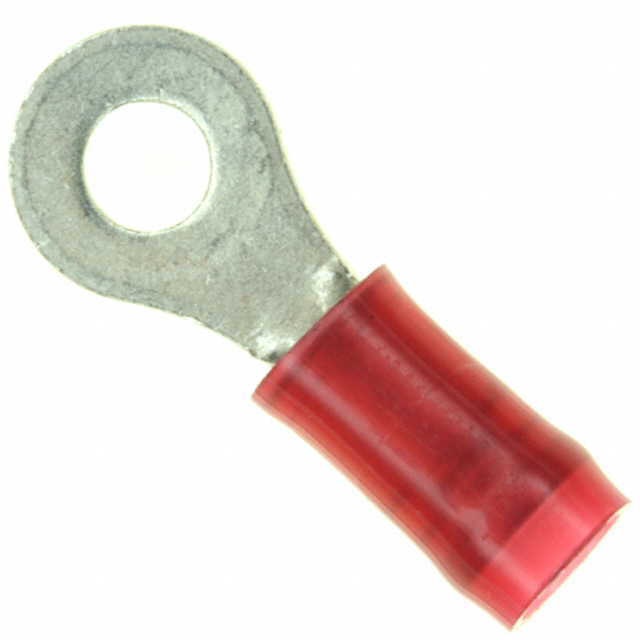

TE Connectivity Raychem Cable Protection 326878	Insulated									Free Hanging (In-Line)		Crimp		Copper			Tin	0.844 "		Circular	7.92 mm	0.312 in			21.44 mm				Nylon Polyamide (PA)	Red	Serrated Termination	6 Stud	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm	22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 326889	Non-Insulated									Free Hanging (In-Line)		Crimp		Copper			Tin	0.955 in		Circular	7.92 mm	0.312 in			24.26 mm						Serrated Termination	6 Stud	0.04 in	1.02 mm					12 AWG	10 AWG			0.15 "	3.81 mm	0.23 in	5.84 mm

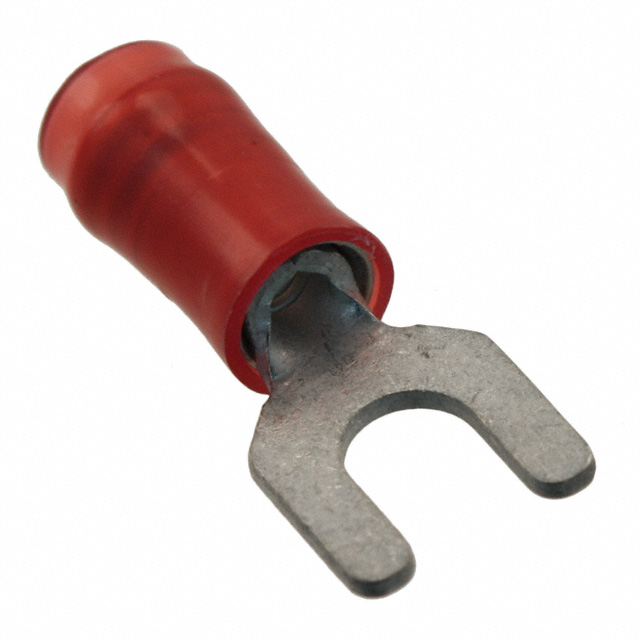

TE Connectivity Raychem Cable Protection 326861	Insulated									Free Hanging (In-Line)		Crimp		Copper			Tin	0.753 in		Standard					19.13 mm	7.54 mm	0.297 in		Nylon Polyamide (PA)	Red	Serrated Termination	6 Stud			0.14 in	0.105 in	3.56 mm	2.67 mm	22 AWG	16 AWG							3.68 mm	0.145 in	13.97 mm	0.55 in	0.203 in	5.16 mm
