043841 Series
Manufacturer: Molex
Beta
⌘K

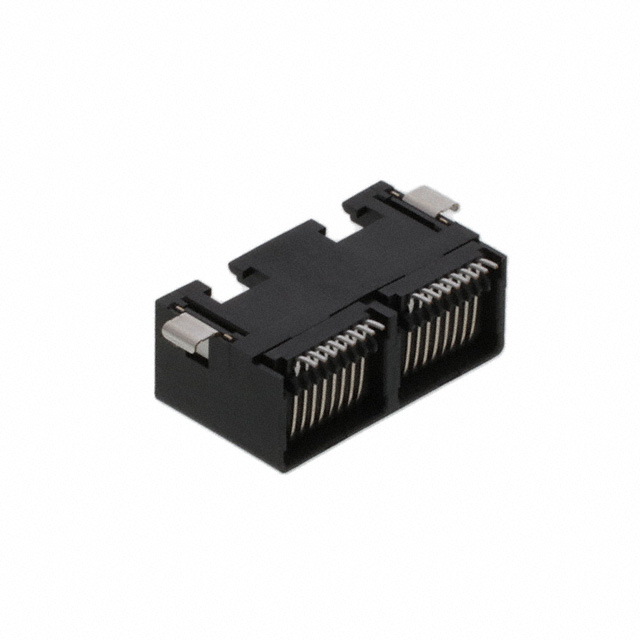

CONN MOD JACK 6P6C R/A UNSHLD
| Part | Termination | Features | Connector Type | Orientation | Mounting Type | Number of Rows | Number of Positions/Contacts | Number of Ports | Contact Finish Thickness | Contact Finish Thickness | Ratings | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Finish | Shielding | Tab Direction | LED Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Solder | Solder Retention | Jack | 90 ° | Surface Mount | 1 | 6p6c (RJ11 RJ12 RJ14 RJ25) | 2 | 15 µin | 0.38 µm | Cat4 | Phosphor Bronze | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Gold | Unshielded | Down | Does Not Contain LED | ||
 Molex | Solder | Solder Retention | Jack | 90 ° | Surface Mount | 1 | 2 | 50 µin | 1.27 µm | Cat4 | Phosphor Bronze | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Gold | Unshielded | Down | Does Not Contain LED | 4 | 8 | |
Molex | Solder | Solder Retention | Jack | 90 ° | Surface Mount | 1 | 6p4c | 2 | 50 µin | 1.27 µm | Cat4 | Phosphor Bronze | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Gold | Unshielded | Down | Does Not Contain LED | ||
Molex | Solder | Solder Retention | Jack | 90 ° | Surface Mount | 1 | 6p6c (RJ11 RJ12 RJ14 RJ25) | 2 | 30 Áin | 0.76 Ám | Cat4 | Phosphor Bronze | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Gold | Unshielded | Down | Does Not Contain LED |
