039880 Series

Manufacturer: Molex

Catalog

TERM BLK 6P SIDE ENT 5.08MM PCB

Part	Mounting Type	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Positions Per Level	Wire Termination	Contact Material - Plating	Number of Levels	Color	Housing Material	Pitch [x]	Pitch [x]	Current	Features	Voltage	Mating Orientation	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Number of Levels [custom]	Mating Orientation	Mating Orientation
Molex 0398804306	Through Hole	Copper Alloy - Nickel Plated	-40 °C	105 ░C	Copper Alloy - Nickel Plated	6	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated	1	Green	Polyamide (PA46) Nylon 4/6	0.2 in	5.08 mm	13.5 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	16 AWG	6 Lb-In	0.68 Nm
Molex 0398800872	Through Hole	Brass - Nickel Plated	-40 °C	105 ░C	Bronze - Nickel Plated		Screw - Rising Cage Clamp	Copper Alloy - Tin Plated		Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	13.5 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	16 AWG	6 Lb-In	0.68 Nm	3

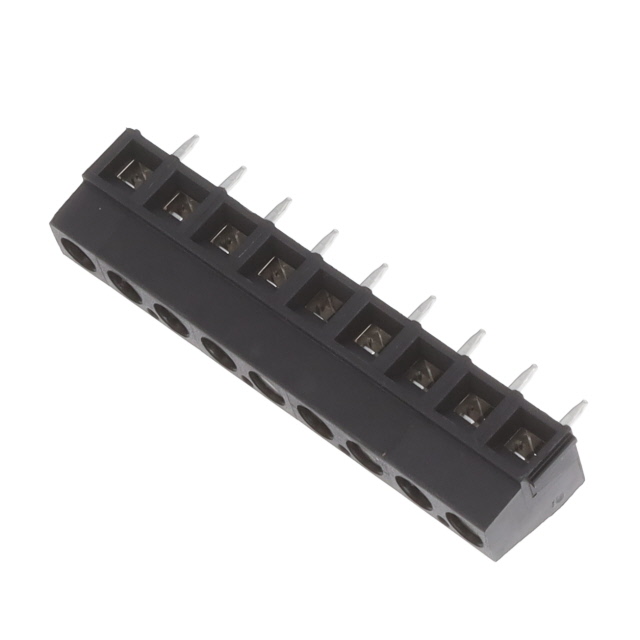

Molex 0398800309	Through Hole	Copper Alloy - Nickel Plated	-40 °C	105 ░C	Copper Alloy - Nickel Plated	9	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated	1	Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	13.5 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	16 AWG	6 Lb-In	0.68 Nm
Molex 0398805506	Through Hole					6	Screw - Rising Cage Clamp		1	Black		0.2 in	5.08 mm											35 °	145 °

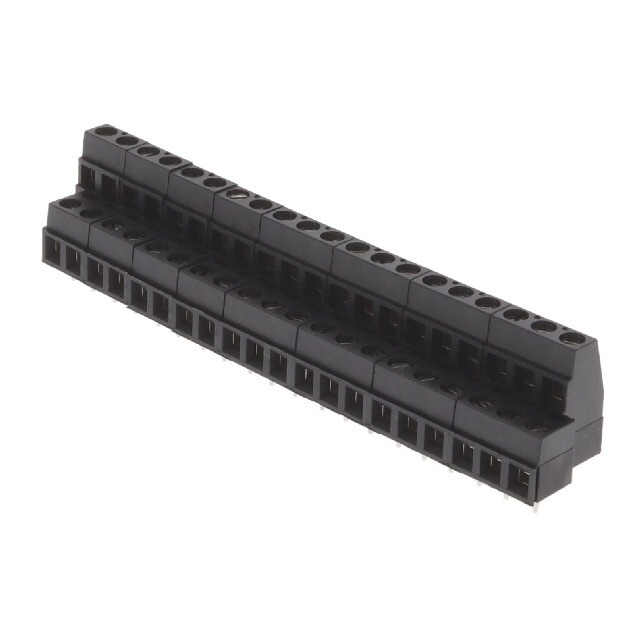

Molex 0398800540	Through Hole	Brass - Nickel Plated	-40 °C	105 ░C	Bronze - Nickel Plated	20	Screw - Rising Cage Clamp		2	Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	13.5 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	16 AWG	6 Lb-In	0.68 Nm
Molex 0398801009	Through Hole	Brass - Nickel Plated	-40 °C	105 ░C	Bronze - Nickel Plated	3	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated		Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	24 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	12 AWG	7 Lb-In	0.79 Nm	3

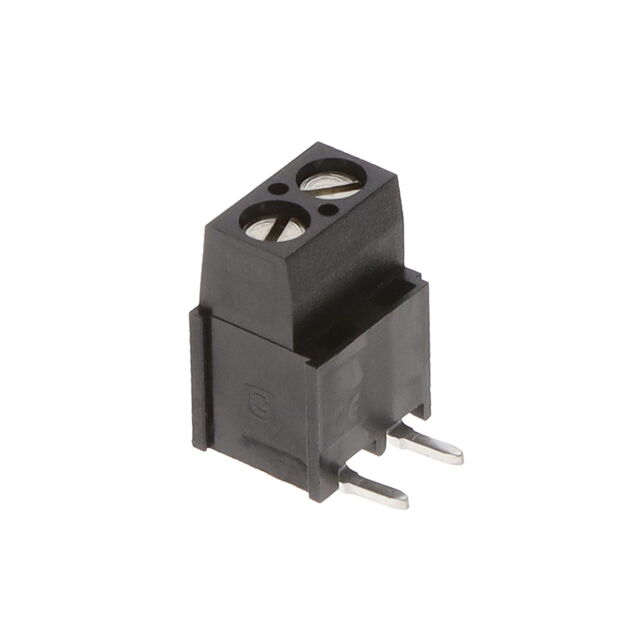

Molex 0398801202	Through Hole	Copper Alloy - Nickel Plated	-40 °C	105 ░C	Copper Alloy - Nickel Plated	2	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated	1	Black		0.2 in	5.08 mm	17.5 A	Interlocking (Side)	300 V	Vertical with Board	M3	30 AWG	12 AWG	4.4 Lb-In	0.5 Nm
Molex 0398801213	Through Hole	Copper Alloy - Nickel Plated	-40 °C	105 ░C	Copper Alloy - Nickel Plated	13	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated	1	Black		0.2 in	5.08 mm	17.5 A	Interlocking (Side)	300 V	Vertical with Board	M3	30 AWG	12 AWG	4.4 Lb-In	0.5 Nm

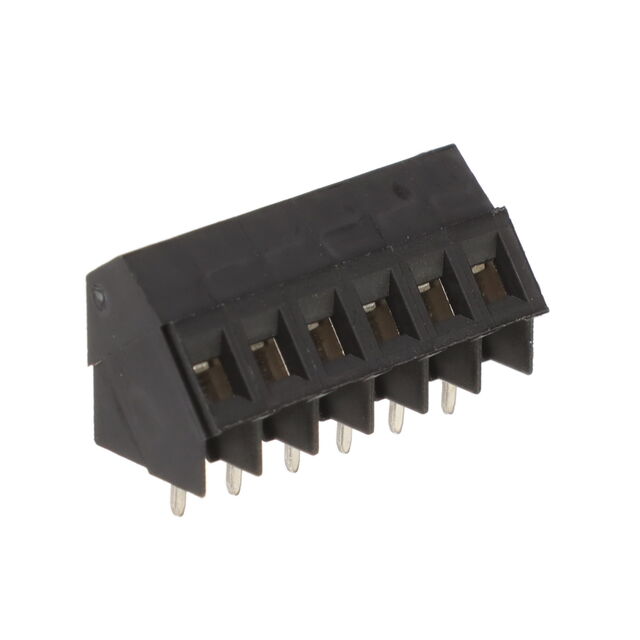

Molex 0398800406	Through Hole	Copper Alloy - Nickel Plated	-40 °C	105 ░C	Copper Alloy - Nickel Plated	6	Screw - Rising Cage Clamp		1	Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	17.5 A		300 V		M3	30 AWG	12 AWG	7 Lb-In	0.79 Nm		35 °	145 °
Molex 0398801048	Through Hole	Brass - Nickel Plated	-40 °C	105 ░C	Bronze - Nickel Plated	16	Screw - Rising Cage Clamp	Copper Alloy - Tin Plated		Black	Polyamide (PA) Nylon	0.2 in	5.08 mm	24 A	Interlocking (Side)	300 V	Horizontal with Board	M3	30 AWG	12 AWG	7 Lb-In	0.79 Nm	3
