M13509 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

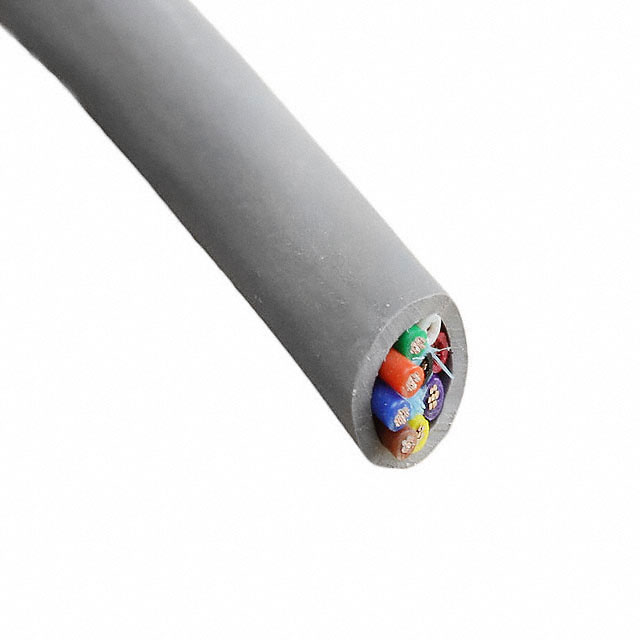

CABLE 9COND 18AWG SLATE 500'
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Cable Type | Ratings | Length | Length | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 80 °C | -20 ░C | 16 | 30 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 9 | Slate | Poly-Vinyl Chloride (PVC) | Multi-Conductor | UL Style 2598 | 152.4 m | 500 ft | 18 AWG | 0.387 in | 9.83 mm | 0.94 mm | 0.037 in | 300 VDC |
ALPHA WIRE | 80 °C | -20 ░C | 16 | 30 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 9 | Slate | Poly-Vinyl Chloride (PVC) | Multi-Conductor | UL Style 2598 | 304.8 m | 1000 ft | 18 AWG | 0.387 in | 9.83 mm | 0.94 mm | 0.037 in | 300 VDC |
