2007791 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

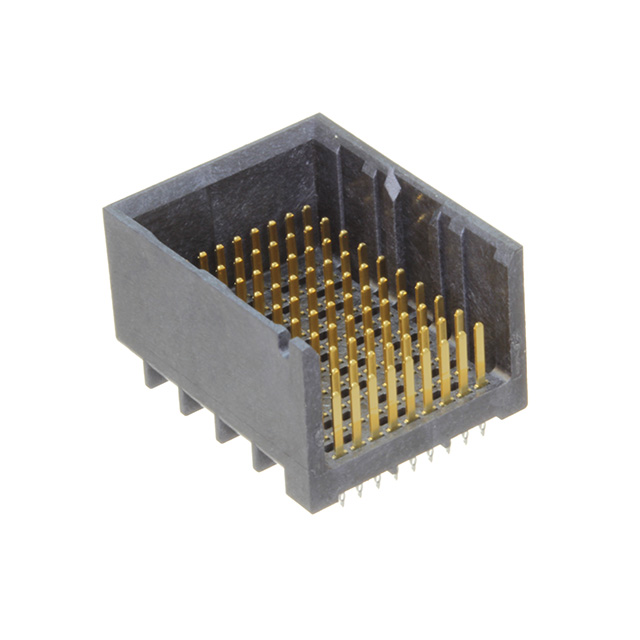

BOARD CONNECTOR, 90 CONTACT(S), 9 ROW(S), MALE, STRAIGHT, 0.075 INCH PITCH, PRESS FIT TERMINAL, LOCKING, BLACK INSULATOR
| Part | Number of Rows | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Voltage Rating | Connector Style | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions Loaded | Number of Columns | Contact Finish | Connector Usage | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 9 | 90 | UL94 V-0 | 0.75 A | 85 °C | -55 °C | Header Male Pins | Black | Through Hole | 0.76 Ám | 30 Áin | 0.075 in | 1.9 mm | 29.9 VAC/DC | Impact | 60 | 30 | All | 10 | Gold | Backplane | Press-Fit |
