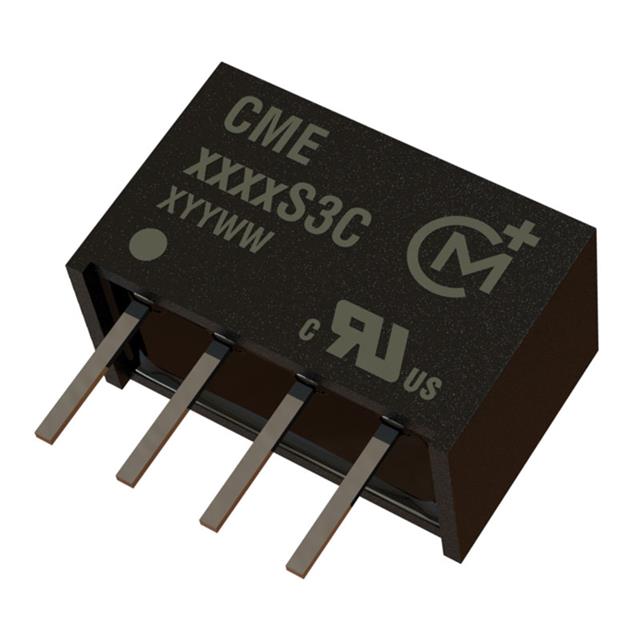

CME03 Series
Manufacturer: Murata Electronics
Beta
⌘K
ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, FIXED, THROUGH HOLE, 750 MW, 3.3 V, 227 MA ROHS COMPLIANT: YES
| Part | Number of Outputs | Power (Watts) | Mounting Type | Applications | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Voltage - Isolation | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Type | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 1 | 0.75 W | Through Hole | ITE (Commercial) | 227 mA | 2.97 V | 3.3 V | 3000 V | 73 % | 0.45 " | 7.5 mm | 0.29 in | 6 mm | 11.5 mm | 0.24 " | 4-SIP Module | Isolated Module | 3.63 V | 85 °C | -40 C |
Murata Electronics | 1 | 0.75 W | Through Hole | ITE (Commercial) | 150 mA | 2.97 V | 5 V | 3000 V | 73 % | 0.45 " | 7.5 mm | 0.29 in | 6 mm | 11.5 mm | 0.24 " | 4-SIP Module | Isolated Module | 3.63 V | 85 °C | -40 C |
