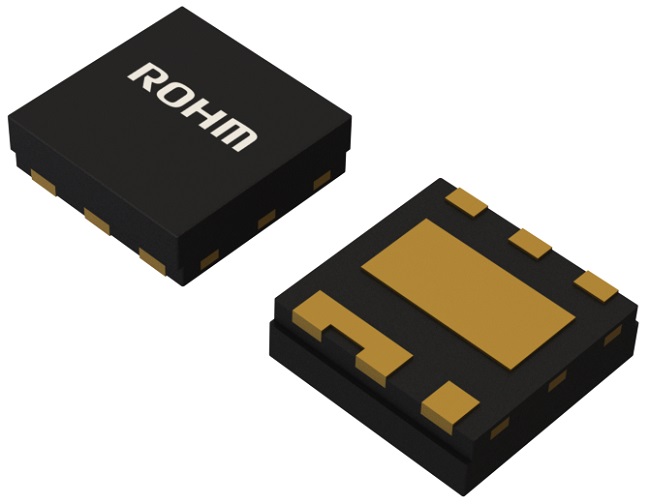

RF9G120BJFRA Series

Pch -40V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

Catalog

Pch -40V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

Part	Qualification	Mounting Type	Grade	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Rds On (Max) @ Id, Vgs	FET Type	Supplier Device Package	Technology	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max) [Max]	Vgs (Max) [Min]	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature	Drain to Source Voltage (Vdss)
Rohm Semiconductor RF9G120BJFRATCR	AEC-Q101	Surface Mount	Automotive	2.5 V	23 W	15.5 nC	6-UDFN Exposed Pad	48 mOhm	P-Channel	DFN2020Y7LSAA	MOSFET (Metal Oxide)	750 pF	5 V	-20 V	12 A	4.5 V 10 V	150 °C	40 V

Pch -40V -12A, DFN2020Y7LSAA, Power MOSFET for Automotive

• AEC-Q101 qualified, Low on - resistance, High power small mold package, Pb-free plating; RoHS compliant, Halogen Free, WettableFlank

RF9G120BJFRA is an automotive grade MOSFET that is AEC-Q101 qualified. Ideal for ADAS and Info. and Lighting and Body.
