B2 1/8 Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

HEATSHRINK 1/8" YELLOW 1=1PC

Part	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Material	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Type	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Length

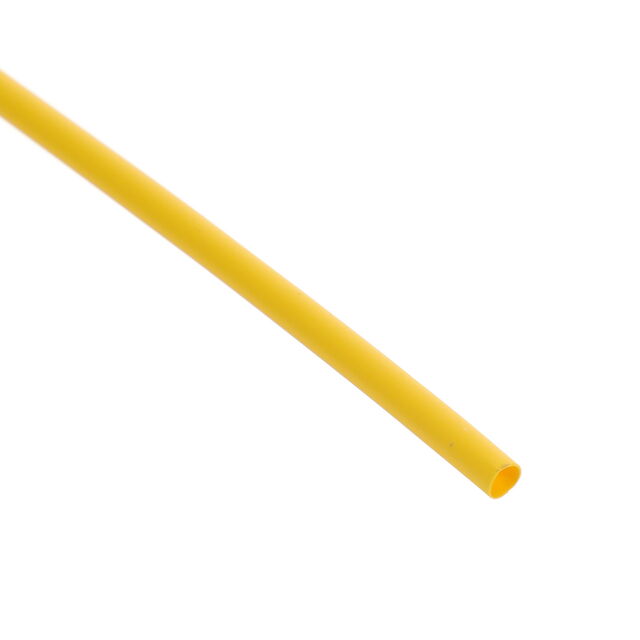

Sumitomo Electric Interconnect Products, Inc. B2 1/8 YELLOW 4FT	Flame Retardant	1.6 mm	0.063 "	4 ft	1.22 m	Polyolefin (PO) Irradiated	Yellow	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm
Sumitomo Electric Interconnect Products, Inc. B2 1/8 YELLOW SPL	Flame Retardant	1.6 mm	0.063 "			Polyolefin (PO) Irradiated	Yellow	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm	152.5 m	500.3 ft	Enter Number of Feet in Order Quantity

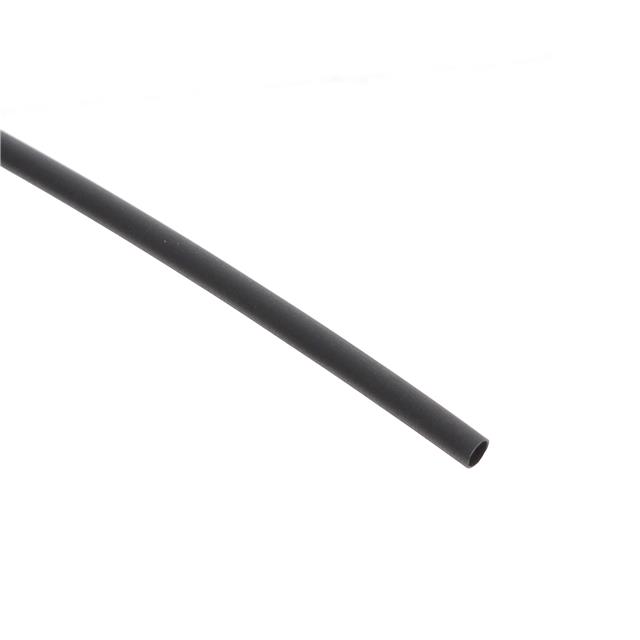

Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLACK 4FT	Flame Retardant UV Resistant	1.6 mm	0.063 "	4 ft	1.22 m	Polyolefin (PO) Irradiated	Black	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm

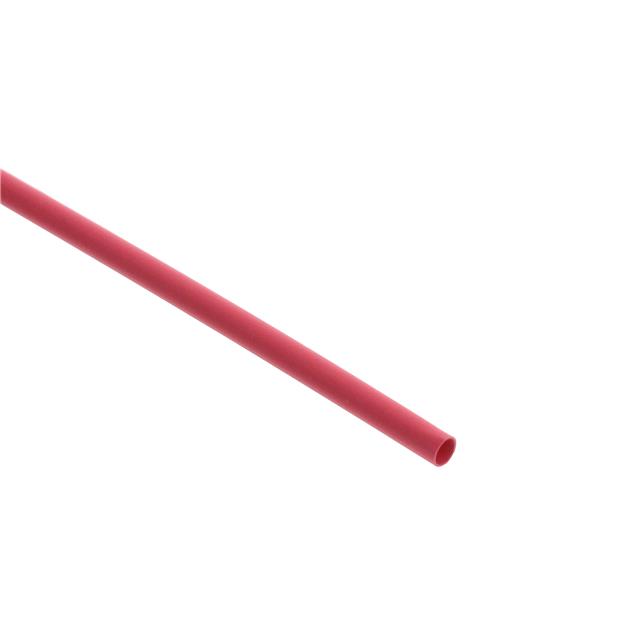

Sumitomo Electric Interconnect Products, Inc. B2 1/8 RED 4FT	Flame Retardant	1.6 mm	0.063 "	4 ft	1.22 m	Polyolefin (PO) Irradiated	Red	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm
Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLACK SPL	Flame Retardant UV Resistant	1.6 mm	0.063 "			Polyolefin (PO) Irradiated	Black	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm	152.5 m	500.3 ft	Enter Number of Feet in Order Quantity

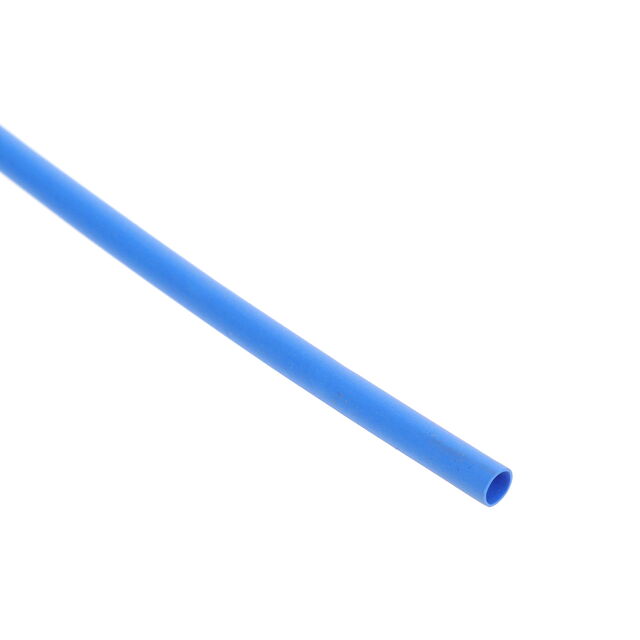

Sumitomo Electric Interconnect Products, Inc. B2 1/8 BLUE 4FT	Flame Retardant	1.6 mm	0.063 "	4 ft	1.22 m	Polyolefin (PO) Irradiated	Blue	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm

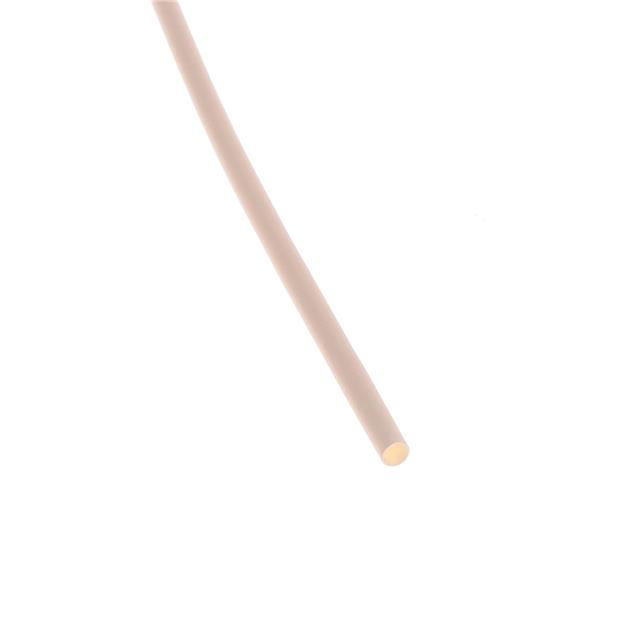

Sumitomo Electric Interconnect Products, Inc. B2 1/8 WHITE 4FT	Flame Retardant	1.6 mm	0.063 "	4 ft	1.22 m	Polyolefin (PO) Irradiated	White	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm

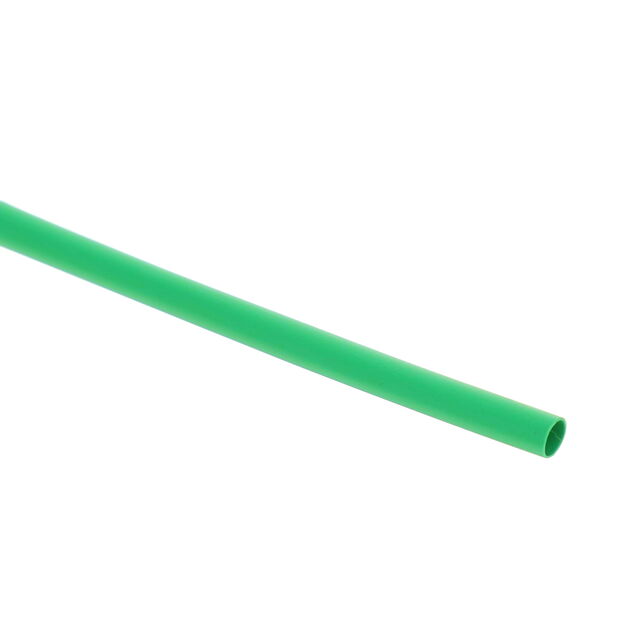

Sumitomo Electric Interconnect Products, Inc. B2 1/8 GREEN SPL	Flame Retardant	1.6 mm	0.063 "			Polyolefin (PO) Irradiated	Green	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm	152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 1/8 RED SPL	Flame Retardant	1.6 mm	0.063 "			Polyolefin (PO) Irradiated	Red	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm	152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 1/8 WHITE SPL	Flame Retardant	1.6 mm	0.063 "			Polyolefin (PO) Irradiated	White	1	2	-55 C	135 °C	90 °C	Tubing Flexible	0.51 mm	0.02 in	0.138 in	3.5 mm	152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
