T 3302 Series

Catalog

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Shell Finish	Color	Shell Size - Insert	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Orientation	Connector Type	Ingress Protection	Shielding	Number of Positions	Voltage Rating	Contact Type	Mounting Feature	Contact Size	Type	Insert Material	Housing Color	Material Flammability Rating	Contact Shape	Note
Amphenol Tuchel Industrial T 3302 018	Nickel	Silver	M16-4	Die Cast	-40 C	100 °C	Metal	Threaded	Gold	10 A	Panel Mount	Keyed	Receptacle Male Pins	IP40	Shielded	4	250 V
Amphenol Tuchel Industrial T 3302 550	Nickel		M16-4	Die Cast	-40 C	100 °C		Threaded			Panel Mount	Keyed	Receptacle Housing	IP40	Shielded	4		Crimp	Bulkhead - Rear Side Nut	1.5 mm	For Male Pins	Thermoplastic	Silver	UL94 V-0	Circular	Contacts Not Included

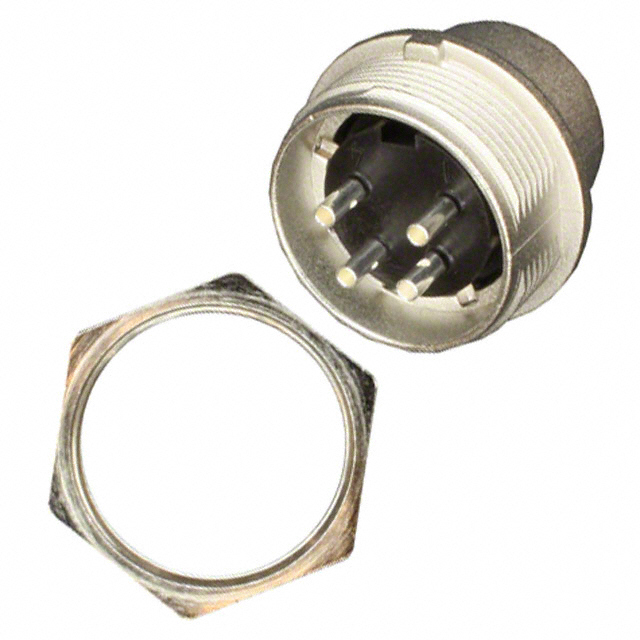

Amphenol Tuchel Industrial T 3302 009	Nickel	Silver	M16-4	Die Cast	-40 C	100 °C	Metal	Threaded	Silver	10 A	Panel Mount	Keyed	Receptacle Male Pins	IP40	Shielded	4	250 V		Bulkhead - Rear Side Nut
