PPTC282 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 56POS 0.1 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Connector Type	Mounting Type	Fastening Type	Number of Rows [custom]	Termination	Contact Type	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height [z]

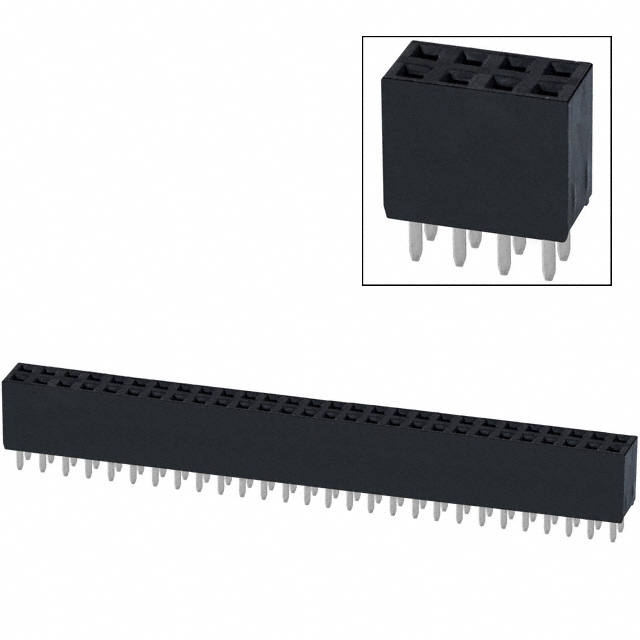

Sullins Connector Solutions PPTC282LFBN-RC	Phosphor Bronze	Polyester	Square	All	0.1 in	2.54 mm	3 A	Header	Through Hole	Push-Pull	2	Solder	Female Socket	56	UL94 V-0	0.335 "	8.51 mm	0.126 "	3.2 mm	0.1 "	2.54 mm	250 V	Tin	-40 C	105 ░C	Black
Sullins Connector Solutions PPTC282LFBN	Phosphor Bronze	Polyester	Square	All	0.1 in	2.54 mm	3 A	Header	Through Hole	Push-Pull	2	Solder	Female Socket	56	UL94 V-0	0.335 "	8.51 mm	0.126 "	3.2 mm	0.1 "	2.54 mm	250 V	Tin	-40 C	105 ░C	Black

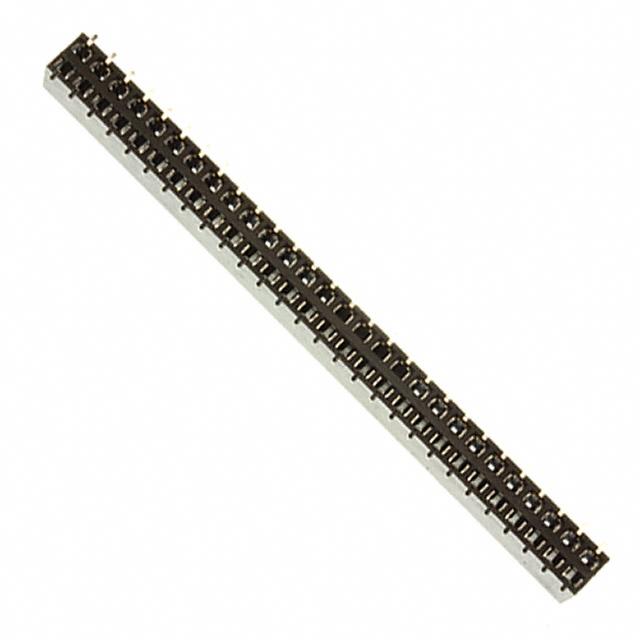

Sullins Connector Solutions PPTC282KFMS	Phosphor Bronze	Polyester	Square	All	0.1 in	2.54 mm	3 A	Header	Surface Mount	Push-Pull	2	Solder	Female Socket	56	UL94 V-0		7.6 mm			0.1 "	2.54 mm	250 V	Tin	-40 C	125 °C	Black	0.299 "

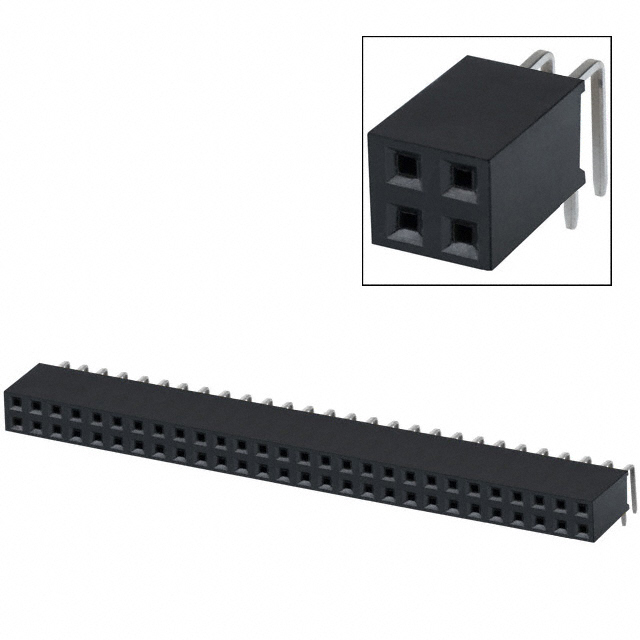

Sullins Connector Solutions PPTC282LJBN-RC	Phosphor Bronze	Polyester	Square	All	0.1 in	2.54 mm	3 A	Header	Right Angle Through Hole	Push-Pull	2	Solder	Female Socket	56	UL94 V-0					0.1 "	2.54 mm	250 V	Tin	-40 C	105 ░C	Black	0.2 in	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions PPTC282LJBN	Phosphor Bronze	Polyester	Square	All	0.1 in	2.54 mm	3 A	Header	Right Angle Through Hole	Push-Pull	2	Solder	Female Socket	56	UL94 V-0					0.1 "	2.54 mm	250 V	Tin	-40 C	105 ░C	Black	0.2 in	0.124 in	3.15 mm	5.08 mm
