7106-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

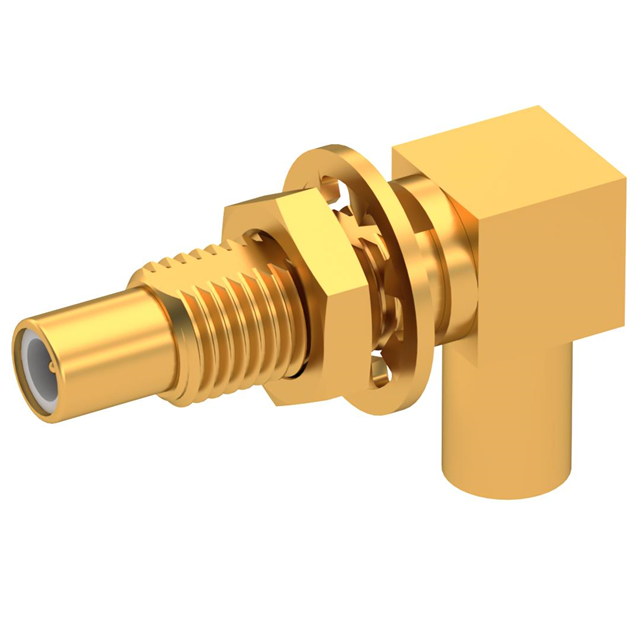

SSMC / RIGHT ANGLE JACK MALE CRI
| Part | Voltage Rating | Body Material | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Shield Termination | Housing Color | Connector Style | Frequency - Max [Max] | Mounting Type | Cable Group | Cable Group | Connector Type | Impedance | Center Contact Material | Fastening Type | Mounting Feature | Contact Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | Brass | Gold | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | 500 | Crimp | Gold | SSMC | 12.4 GHz | Panel Mount Right Angle | 196 | RG-178 | Jack Male Pin | 50 Ohms | Beryllium Copper | Threaded | Bulkhead - Front Side Nut | Crimp | 1 |
