P14 Series

Catalog

RING TONGUE TERMINAL, M10, 3/8", 14 AWG, 2.5 MM², P SERIES

Part	Termination	Width - Outer Edges	Width - Outer Edges	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Stud/Tab Size	Terminal Type	Insulation	Thickness	Thickness	Mounting Type	Features	Length - Overall	Length - Overall	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Length - Termination	Length - Termination	Length - Overall [x]	Length - Overall [x]	Length - Pin [x]	Length - Pin [x]	Pin Diameter [diameter]	Pin Diameter [diameter]	Tongue Inside Opening	Tongue Inside Opening	Tongue Inside Opening [custom]	Tongue Inside Opening [custom]

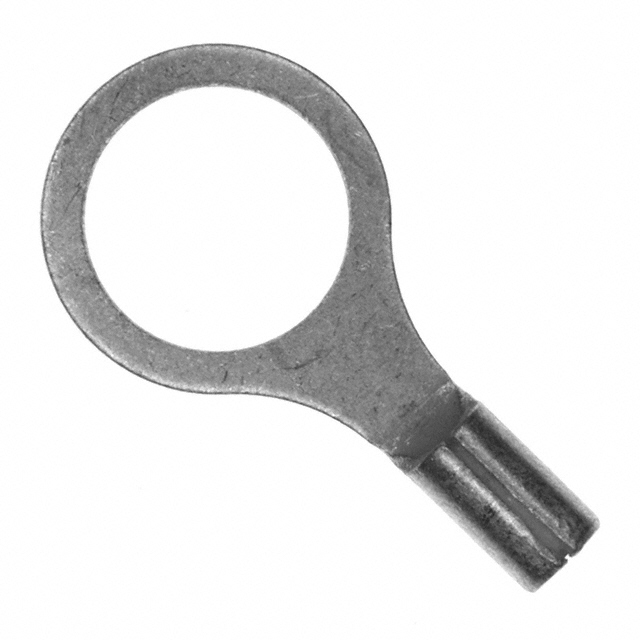

Panduit Corp P14-38R-M	Crimp	0.53 in	13.46 mm	Tin	14 AWG	18 AWG	0.375 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination	25.4 mm	1 in	Copper

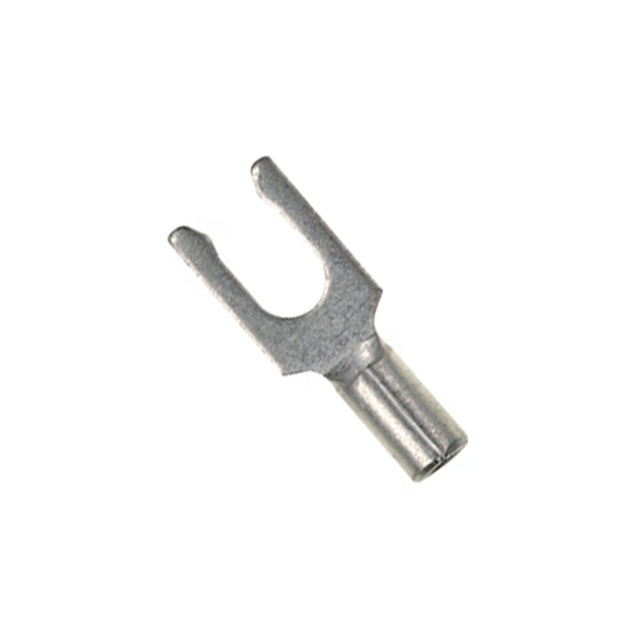

Panduit Corp P14-10LF-C	Crimp			Tin	14 AWG	16 AWG	10 Stud	Snap Spring	Non-Insulated			Free Hanging (In-Line)	Brazed Seam Serrated Termination	19.56 mm	0.77 in	Copper	8.38 mm	0.33 in

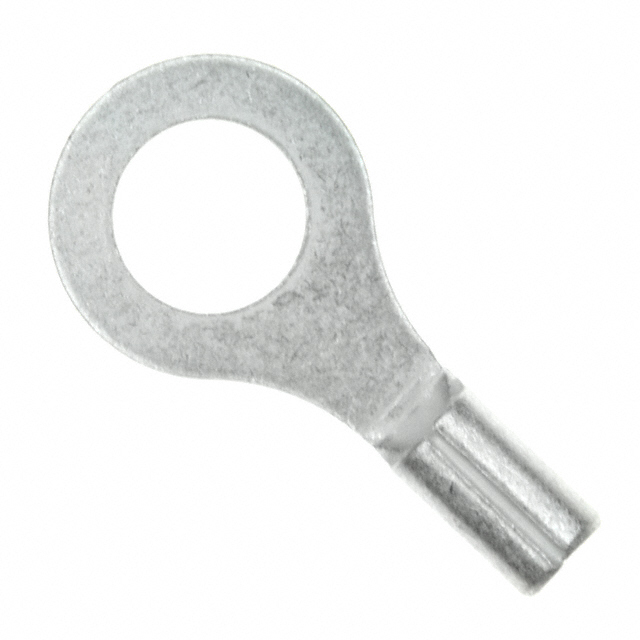

Panduit Corp P14-14R-M	Crimp			Tin	14 AWG	18 AWG	0.25 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination	23.11 mm	0.91 in	Copper	11.68 mm	0.46 in
Panduit Corp P14-38R-C	Crimp	0.53 in	13.46 mm	Tin	14 AWG	18 AWG	0.375 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination	25.4 mm	1 in	Copper

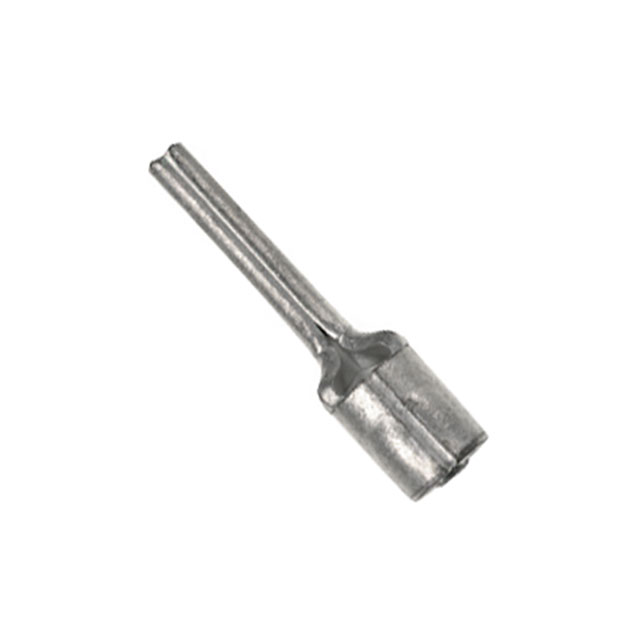

Panduit Corp P14-P47-C	Crimp			Tin	2.5 mm² 14 AWG	2 mm² 16 AWG			Non-Insulated				Brazed Seam			Copper			4.06 mm	0.16 in	6.6 mm	0.26 in	0.75 in	19.05 mm	0.49 in	12.45 mm	0.07 in	1.78 mm

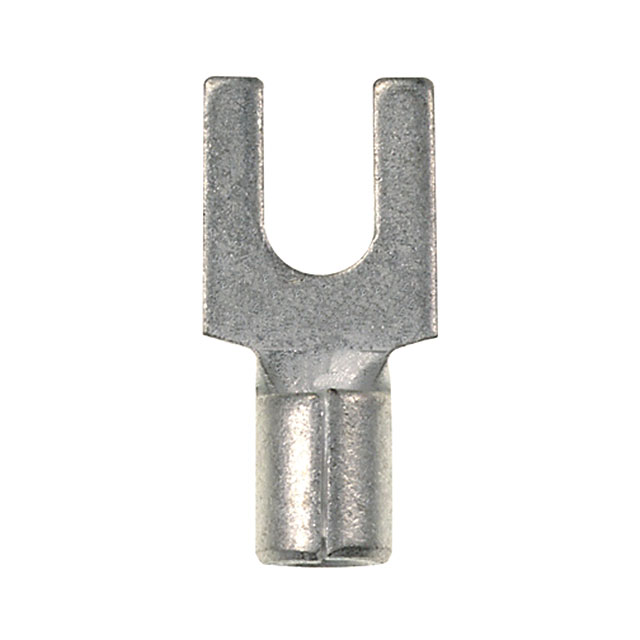

Panduit Corp P14-6FN-M	Crimp			Tin	14 AWG	18 AWG	6 Stud	Standard	Non-Insulated			Free Hanging (In-Line)	Brazed Seam Serrated Termination			Copper	6.1 mm	0.24 in					0.63 in	16 mm					3.81 mm	0.15 in

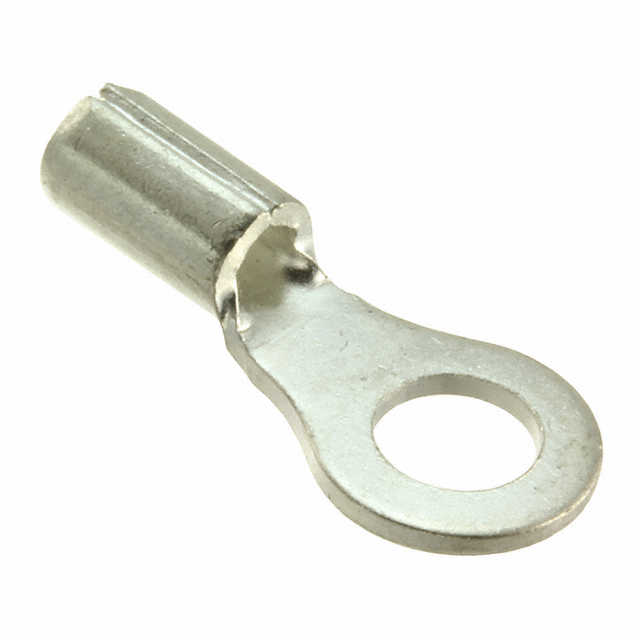

Panduit Corp P14-8R-M	Crimp	0.31 in	7.87 mm	Tin	14 AWG	18 AWG	8 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination			Copper							0.71 in	18.03 mm
Panduit Corp P14-6RHT6-C	Crimp			Nickel	14 AWG	18 AWG	6 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination			Copper	6.35 mm	0.25 "
Panduit Corp P14-6RHT6-M	Crimp			Nickel	14 AWG	18 AWG	6 Stud	Circular	Non-Insulated	0.76 mm	0.03 in	Free Hanging (In-Line)	Brazed Seam Serrated Termination			Copper	6.35 mm	0.25 "
Panduit Corp P14-8FF-M	Crimp	0.31 in	7.87 mm	Tin	14 AWG	16 AWG	8 Stud	Flanged	Non-Insulated			Free Hanging (In-Line)	Brazed Seam Serrated Termination			Copper							0.72 in	18.29 mm							0.173 in	4.39 mm
