EFC Series
Manufacturer: Delta Electronics
Beta
⌘K

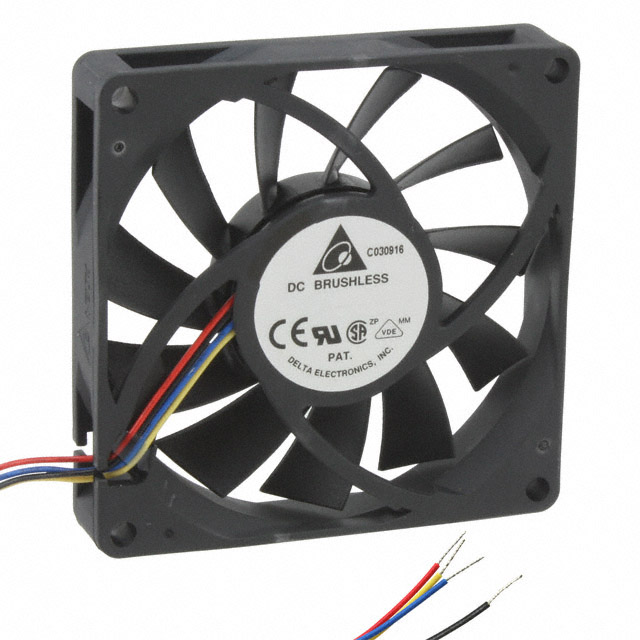

DC FANS FAN, 80X15MM, 12VDC, 48.8CFM, 3.96W, 0.33A, 41DBA, BALL, 4-LEADS, TACH/PWM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Width [y] | Weight | Weight | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Approval Agency | Power (Watts) | Voltage - Rated | Static Pressure | Static Pressure | Termination | RPM | Noise | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 7 V | 12.6 VDC | Aluminum | 0.33 A | Plastic | 70000 Hrs | 15 mm | 67.13 g | 0.148 lb | 80 mm | 80 mm | 48.8 CFM | 1.37 m³/min | Ball | -10 °C | 60 °C | Tubeaxial | CE CSA UL VDE | 3.96 W | 12 VDC | 0.171 in H2O | 42.6 Pa | 4 Wire Leads | 3800 RPM | 41 dB | PWM Control Speed Sensor (Tach) |
