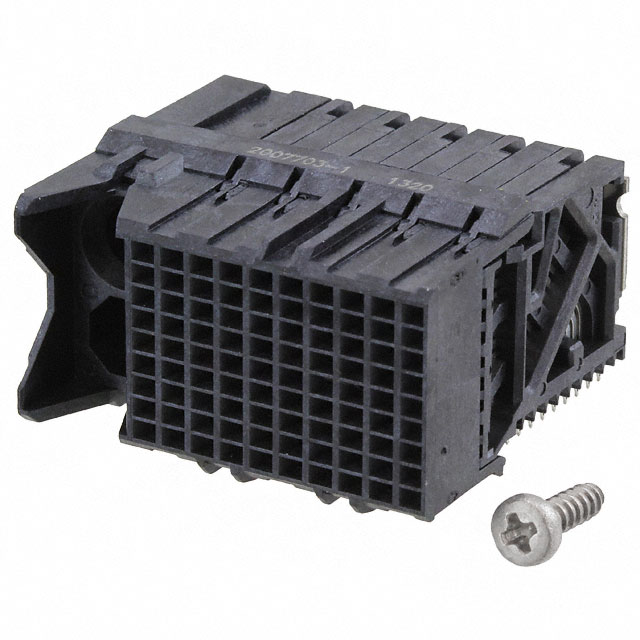

2007703 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
IMP100S,R,RA3P10C,LG,39
| Part | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Connector Type | Color | Connector Usage | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Number of Columns | Contact Finish | Features | Number of Positions Loaded | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Press-Fit | 85 °C | -55 °C | Guide Left Impact | Receptacle Female Sockets | Black | Daughtercard | 0.075 in | 1.91 mm | Board Edge Right Angle Through Hole | 90 | 9 | 0.76 Ám | 30 Áin | UL94 V-0 | 10 | Gold | Board Guide | All | |||
TE Connectivity Raychem Cable Protection | Press-Fit | 85 °C | -55 °C | Guide Left Impact | Receptacle Female Sockets | Black | Daughtercard | 0.075 in | 1.91 mm | Board Edge Right Angle Through Hole | 90 | 9 | 0.76 Ám | 30 Áin | UL94 V-0 | 10 | Gold | Board Guide | All | 60 | 30 | 30 VAC |
