AKA01 Series

Catalog

CONN RCP HSG M 12P INLINE PNL MT

Part	Connector Type	Mounting Feature	Type	Mounting Type	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Note	Material Flammability Rating	Shell Size - Insert	Includes	Includes Total Count	Number of Positions	Features	Shell Finish	Shell Material	Orientation	Shielding	Fastening Type	Insert Material	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)
TE Intercontec AKA013N00410240000	Receptacle Housing	Bulkhead Front Side Nut	For Male Pins	Free Hanging (In-Line) Panel Mount	Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	UL94 V-0	M23-12	Backshell Cable Clamp Connector O-Ring	4 pcs	12	Backshell Cable Clamp	Nickel	Zinc Die Cast	Keyed	Shielded	Push-Twist	PBT Polybutylene Terephthalate	Circular	-20 °C	130 °C

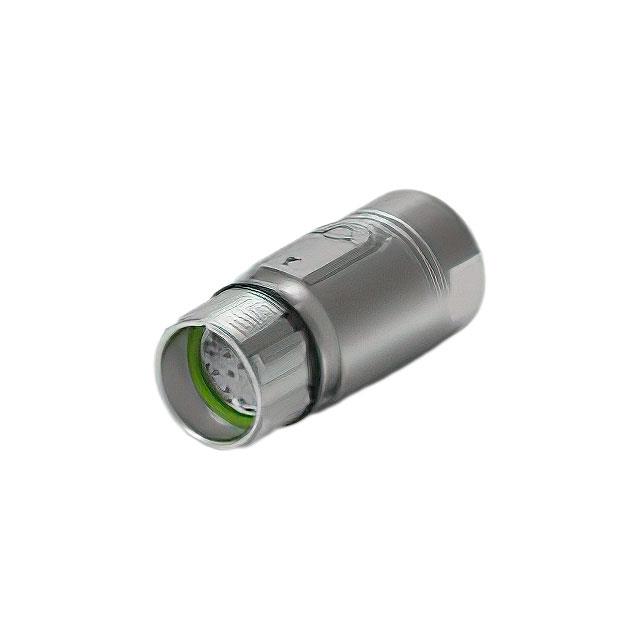

TE Intercontec AKA015N00400200000	Receptacle Housing		For Male Pins	Free Hanging (In-Line)	Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	UL94 V-0	M23-17	Backshell Cable Clamp Connector	3 pcs	17	Backshell Cable Clamp	Nickel	Zinc Die Cast	Keyed	Shielded	Push-Twist	PBT Polybutylene Terephthalate	Circular	-20 °C	130 °C
TE Intercontec AKA013N00400200000	Receptacle Housing		For Male Pins	Free Hanging (In-Line)	Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	UL94 V-0	M23-12	Backshell Cable Clamp Connector	3 pcs	12	Backshell Cable Clamp	Nickel	Zinc Die Cast	Keyed	Shielded	Push-Twist	PBT Polybutylene Terephthalate	Circular	-20 °C	130 °C
TE Intercontec AKA012N00410100000	Receptacle Housing		For Male Pins	Free Hanging (In-Line)	Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	UL94 V-0	M23-12	Backshell Cable Clamp Connector	3 pcs	12	Backshell Cable Clamp	Nickel	Zinc Die Cast	Keyed	Shielded	Push-Twist	PBT Polybutylene Terephthalate	Circular	-20 °C	130 °C

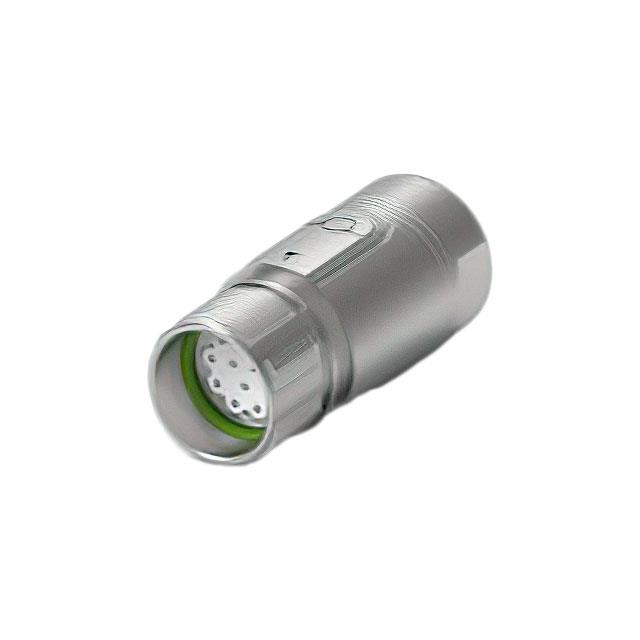

TE Intercontec AKA012N00390100000	Receptacle Housing		For Male Pins	Free Hanging (In-Line)	Silver	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	UL94 V-0	M23-12	Backshell Cable Clamp Connector	3 pcs	12	Backshell Cable Clamp	Nickel	Zinc Die Cast	Keyed	Shielded	Push-Twist	PBT Polybutylene Terephthalate	Circular	-20 °C	130 °C
