TR9CA3000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

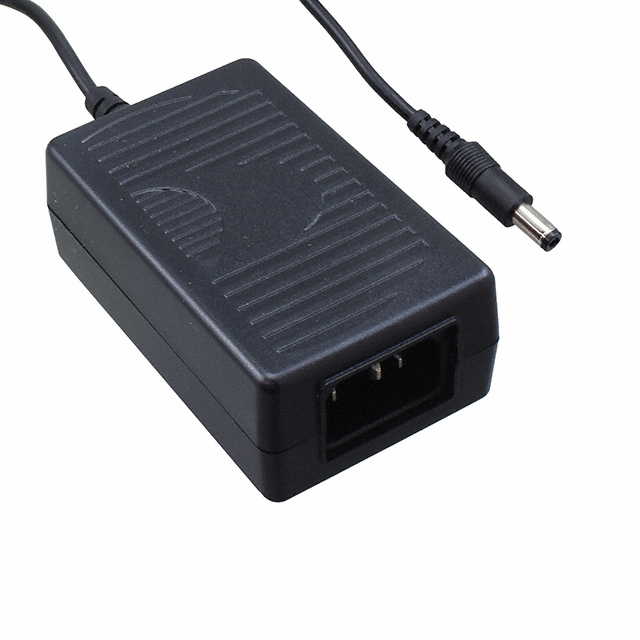

AC/DC DESKTOP ADAPTER 5V 15W
| Part | Form | Efficiency | Input Connector | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Cord Length | Cord Length | Voltage - Output | Current - Output (Max) [Max] | Output Connector [diameter] | Output Connector | Output Connector [x] | No Load Power Consumption | Input Type | Applications | Power (Watts) | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Desktop (Class I) | CoC Tier 1 Level VI | IEC 320-C14 | 3.43 " | 1.83 in | 32 mm | 1.26 " | 46.5 mm | 87 mm | 1.5 m | 59 in | 5 V | 3 A | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 75 mW | Cord (Sold Separately) | Household Appliances ITE (Commercial) Medical | 15 W | 60335-1 60601-1 60950-1 62368-1 | -20 ░C | 40 °C | International | 264 VAC | 90 VAC | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI | |||
 GlobTek, Inc. | Desktop (Class I) | Level VI | IEC 320-C14 | 1.97 " | 3.17 " | 1.22 in | 50 mm | 1.23 m | 48.4 in | 5 V | 3 A | 2.1 mm 5.5 mm | Barrel Plug | 11 mm | 75 mW | Cord (Sold Separately) | ITE (Commercial) | 15 W | 60950-1 | 0 °C | 40 °C | International | 264 VAC | 90 VAC | BSI CB CCC CE cULus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI | 80.6 mm | 31 mm | Positive Center | ||
 GlobTek, Inc. | Desktop (Class I) | Level VI | IEC 320-C14 | 1.97 " | 3.17 " | 1.22 in | 50 mm | 1.23 m | 48.4 in | 5 V | 3 A | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 75 mW | Cord (Sold Separately) | ITE (Commercial) | 15 W | 60950-1 | 0 °C | 40 °C | International | 264 VAC | 90 VAC | BSI CB CCC CE cULus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI | 80.6 mm | 31 mm | Positive Center | ||

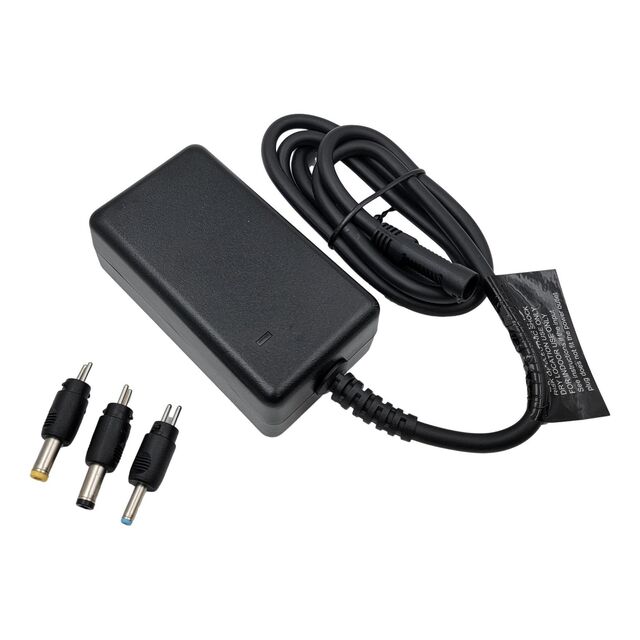

 GlobTek, Inc. | Desktop (Class I) | Level VI | IEC 320-C14 | 3.43 " | 1.85 in | 1.26 " | 87 mm | 1.2 m | 47.2 in | 5 V | 3 A | Barrel Plug Kit (1.3mm x 3.5mm | 75 mW | Cord (Sold Separately) | Household Appliances ITE (Commercial) Medical | 15 W | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | -20 ░C | 40 °C | International | 264 VAC | 90 VAC | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI | 47 mm | 32 mm |
