GW1YBR-P Series
Manufacturer: ODU
Beta
⌘K

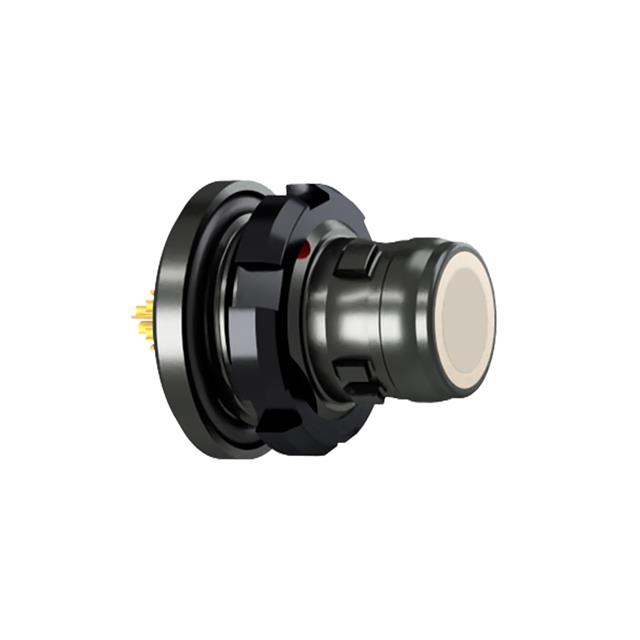

ODU AMC PANEL MOUNT PLUG, SZ 1,
| Part | Number of Positions | Applications | Mounting Type | Shielding | Shell Finish | Ingress Protection | Termination | Color | Mounting Feature | Insert Material | Shell Size - Insert | Primary Material | Material Flammability Rating | Orientation | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Fastening Type | Connector Type | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16 | Industrial Medical Military | Panel Mount Through Hole | Shielded | Ruthenium over Electroless Nickel | IP68 IP69K | Solder | Silver | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | 1 | Metal | UL94 V-0 | B | 200 V | 50 µin | 1.27 µm | Gold | -51 °C | 125 °C | Aluminum | Detent Lock Push-Pull | Receptacle Female Sockets | 2 A | Copper Alloy | |
16 | Industrial Medical Military | Panel Mount | Shielded | Ruthenium over Electroless Nickel | IP68 IP69K | Silver | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | 1 | Metal | UL94 V-0 | B | 200 V | 50 µin | 1.27 µm | Gold | -51 °C | 125 °C | Aluminum | Detent Lock Push-Pull | Receptacle Female Sockets | 2 A | Copper Alloy | ||
10 | Industrial Medical Military | Panel Mount | Shielded | Ruthenium over Electroless Nickel | IP68 IP69K | Silver | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | 1 | Metal | UL94 V-0 | B | 50 µin | 1.27 µm | Gold | -51 °C | 125 °C | Aluminum | Detent Lock Push-Pull | Receptacle Female Sockets | 2 A | Copper Alloy |
