CNX_480 Series

Manufacturer: Visual Communications Company - VCC

Catalog

PNLMNT INDCTR BLK ANDZD ALUM YLW

Part	Lens Transparency	Panel Cutout Shape	Lamp Color	Type	Termination Style	Current	Lens Color	Lens Style	Ingress Protection	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Millicandela Rating	Lens Size [diameter]	Voltage

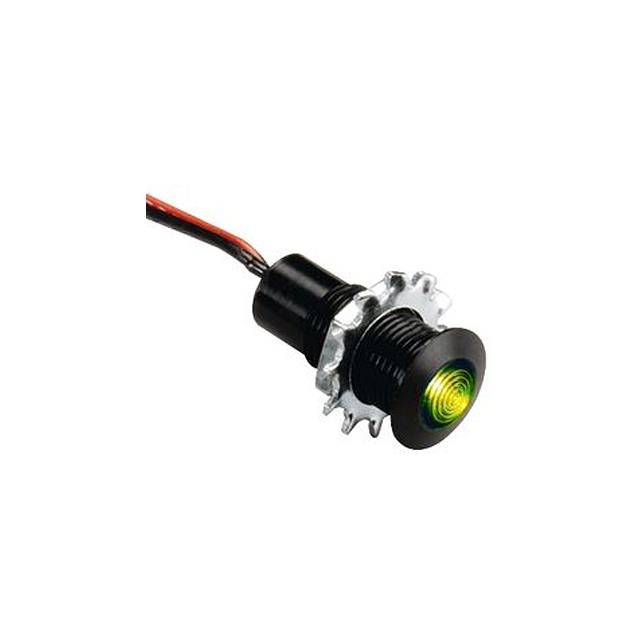

Visual Communications Company - VCC CNX_480_1_YTP_12	Fresnel	Round	Yellow	LED	Wire Leads - 12" (304.80mm)	20 mA	Yellow	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	330 mcd	12.7 mm	1.9 V

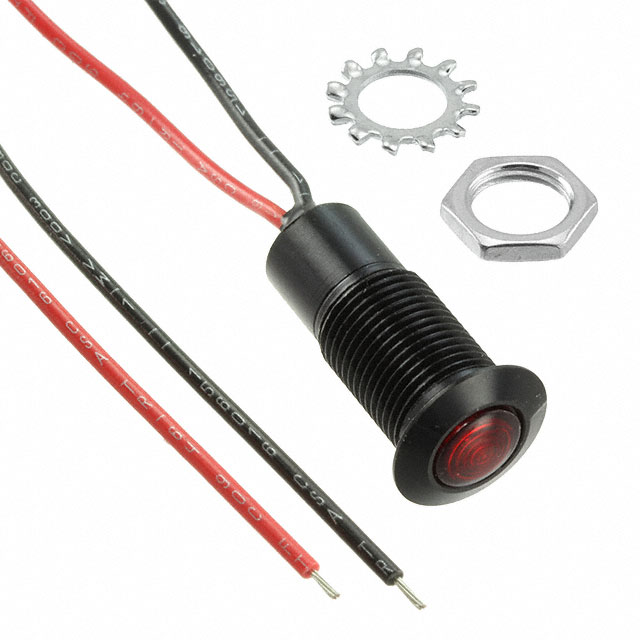

Visual Communications Company - VCC CNX_480_1_RTP_12	Fresnel	Round	Red	LED	Wire Leads - 12" (304.80mm)	20 mA	Red	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	295 mcd	12.7 mm	1.8 V
Visual Communications Company - VCC CNX_480_2_RTP_12	Fresnel	Round	Red	LED	Wire Leads - 12" (304.80mm)	20 mA	Red	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	295 mcd	12.7 mm	1.8 V

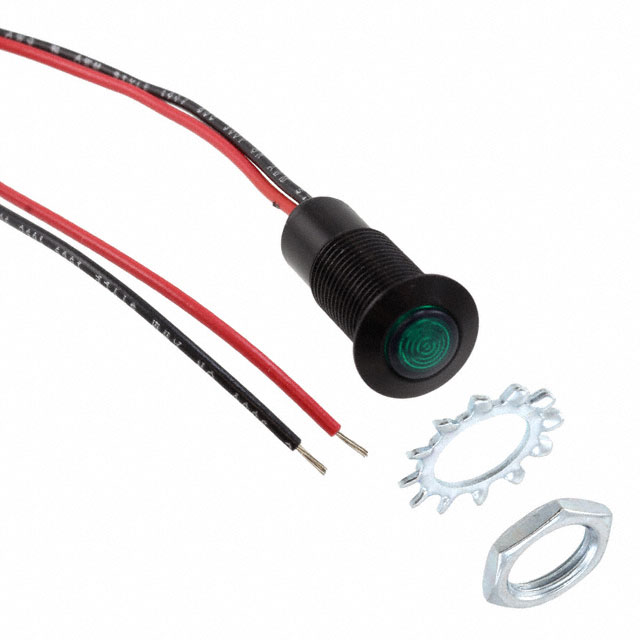

Visual Communications Company - VCC CNX_480_1_GTP_12	Fresnel	Round	Green	LED	Wire Leads - 12" (304.80mm)	20 mA	Green	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	415 mcd	12.7 mm	1.9 V
Visual Communications Company - VCC CNX_480_2_BTP_12	Fresnel	Round	Blue	LED	Wire Leads - 12" (304.80mm)	20 mA	Blue	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	1125 mcd	12.7 mm	3 V
Visual Communications Company - VCC CNX_480_2_YTP_12	Fresnel	Round	Yellow	LED	Wire Leads - 12" (304.80mm)	20 mA	Yellow	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	330 mcd	12.7 mm	1.9 V

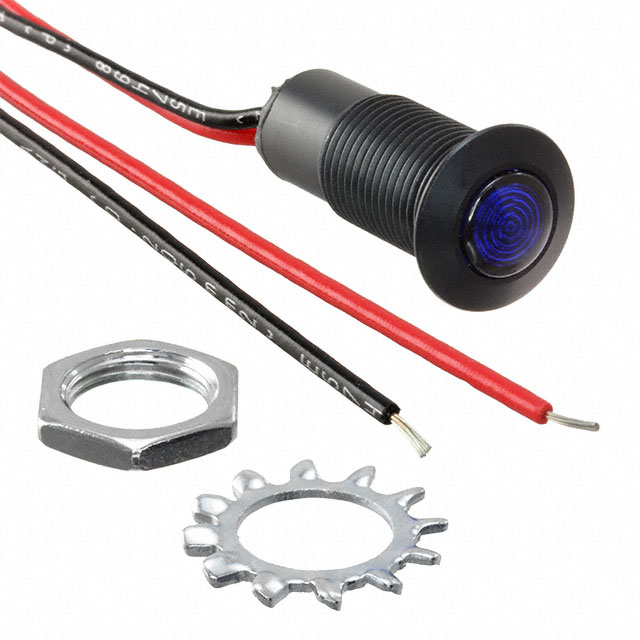

Visual Communications Company - VCC CNX_480_1_BTP_12	Fresnel	Round	Blue	LED	Wire Leads - 12" (304.80mm)	20 mA	Blue	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	1125 mcd	12.7 mm	3 V

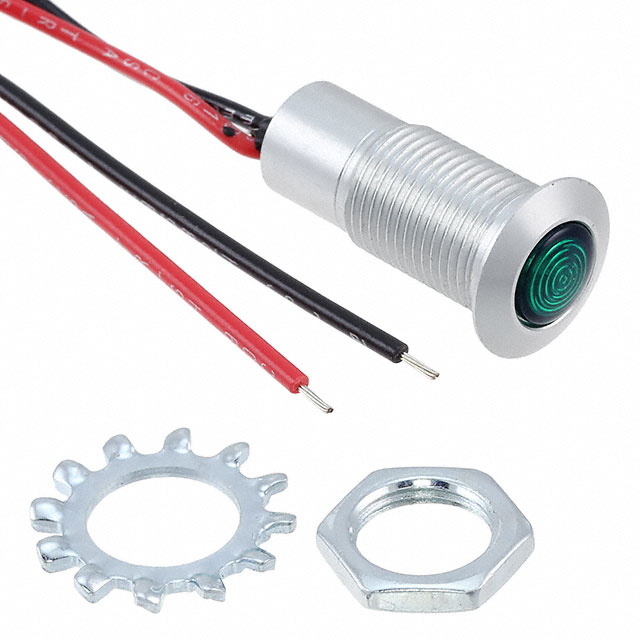

Visual Communications Company - VCC CNX_480_2_GTP_12	Fresnel	Round	Green	LED	Wire Leads - 12" (304.80mm)	20 mA	Green	Round with Domed Top	NEMA 4	10.16 mm	0.4 in	415 mcd	12.7 mm	1.9 V
