IL-WX-10 Series

Catalog

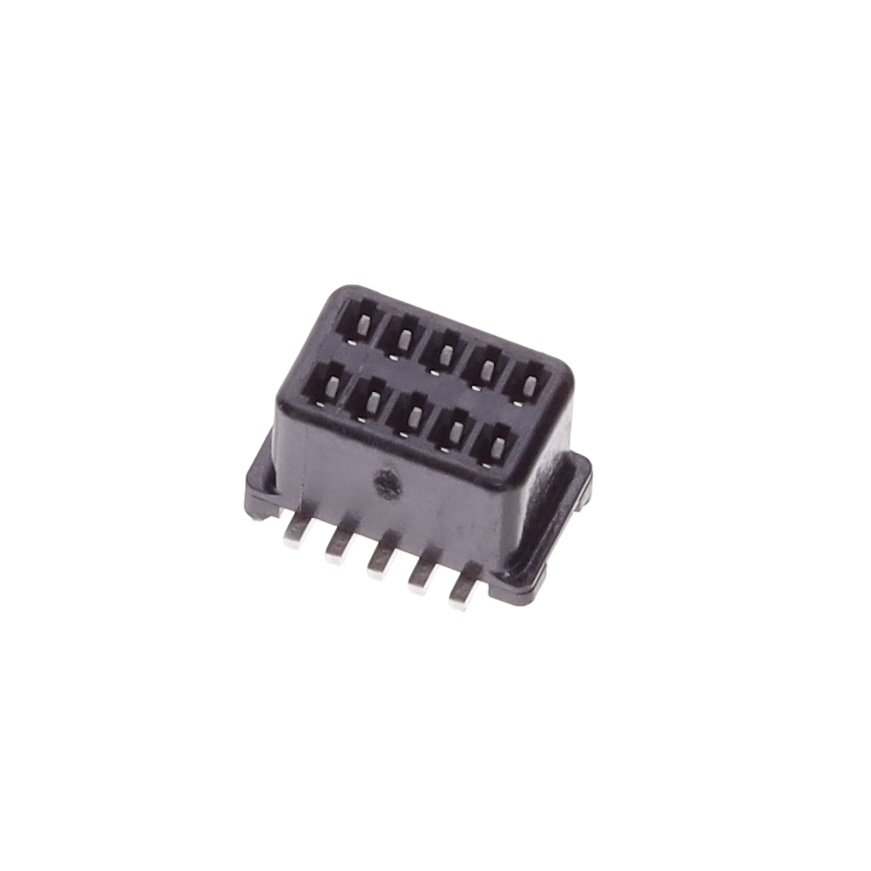

CONN RCPT 10POS 0.031 TIN SMD

Part	Insulation Material	Applications	Contact Shape	Contact Material	Connector Type	Features	Number of Positions Loaded	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Type	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Shrouding	Insulation Height [z]	Insulation Height [z]
JAE Electronics IL-WX-10SB-VF-BE	Polyphenylene Sulfide (PPS) Glass Filled	General Purpose	Square	Copper Alloy	Receptacle	Board Guide Solder Retention	All	Surface Mount	Black	0.128 in	3.25 mm	0.8 mm	0.031 in	2	85 °C	-40 C	0.5 A	10	UL94 V-0	0.059 in	1.5 mm	Push-Pull	Forked	Solder
JAE Electronics IL-WX-10PB-HF-BE	Polyphenylene Sulfide (PPS) Glass Filled		Square	Copper Alloy	Header	Board Guide Solder Retention	All	Right Angle Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.185 in	4.7 mm
JAE Electronics IL-WX-10P-HF-B-E1000E	Polyphenylene Sulfide (PPS) Glass Filled		Square	Copper Alloy	Header	Solder Retention	All	Right Angle Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.185 in	4.7 mm
JAE Electronics IL-WX-10S-VF-B-E1000E	Polyphenylene Sulfide (PPS) Glass Filled	General Purpose	Square	Copper Alloy	Receptacle	Solder Retention	All	Surface Mount	Black	0.128 in	3.25 mm	0.8 mm	0.031 in	2	85 °C	-40 C	0.5 A	10	UL94 V-0	0.059 in	1.5 mm	Push-Pull	Forked	Solder
JAE Electronics IL-WX-10PB-HF-HD-S-BE	Polyphenylene Sulfide (PPS) Glass Filled		Square	Copper Alloy	Header	Board Guide Solder Retention	All	Right Angle Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.185 in	4.7 mm
JAE Electronics IL-WX-10SB-VF-B-E1000E	Polyphenylene Sulfide (PPS) Glass Filled	General Purpose	Square	Copper Alloy	Receptacle	Board Guide Solder Retention	All	Surface Mount	Black	0.128 in	3.25 mm	0.8 mm	0.031 in	2	85 °C	-40 C	0.5 A	10	UL94 V-0	0.059 in	1.5 mm	Push-Pull	Forked	Solder
JAE Electronics IL-WX-10P-VF-B-E1000E	Polyphenylene Sulfide (PPS)		Square	Brass	Header	Solder Retention	All	Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.144 "	3.66 mm
JAE Electronics IL-WX-10PB-VF-BE	Polyphenylene Sulfide (PPS)		Square	Brass	Header	Board Guide Solder Retention	All	Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.144 "	3.66 mm
JAE Electronics IL-WX-10PB-HF-HD-S-B-E1000E	Polyphenylene Sulfide (PPS) Glass Filled	General Purpose	Square	Copper Alloy	Header	Board Guide Solder Retention	All	Right Angle Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	0.5 A	10	UL94 V-0	0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in		Shrouded - 4 Wall	0.185 in	4.7 mm
JAE Electronics IL-WX-10PB-VF-B-E1000E	Polyphenylene Sulfide (PPS)		Square	Brass	Header	Board Guide Solder Retention	All	Surface Mount	Black			0.8 mm	0.031 in	2	85 °C	-40 C	500 mA	10		0.059 in	1.5 mm	Push-Pull	Male Pin	Solder	1.8 mm	0.071 in	Tin	Shrouded - 4 Wall	0.144 "	3.66 mm
