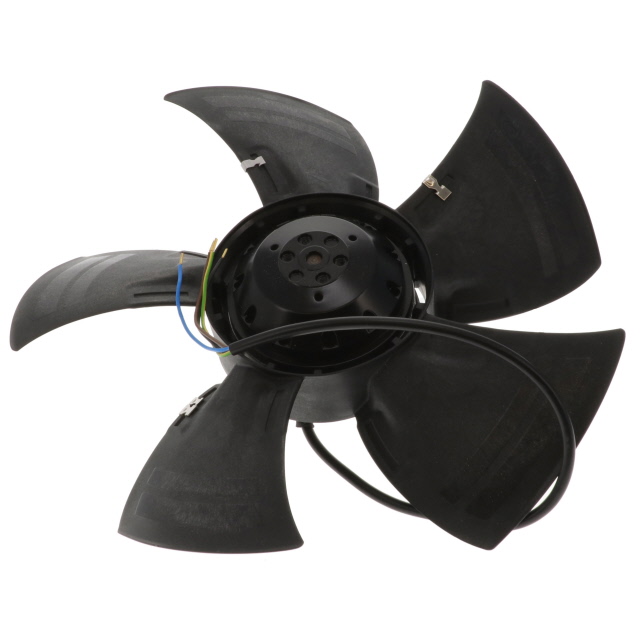

A4E300 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC AXIALFAN
| Part | Material - Blade [custom] | Material - Blade [custom] | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension | Weight | Weight | Ingress Protection | Termination | RPM | Bearing Type | Voltage - Rated | Power (Watts) | Approval Agency | Features | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) Coating | Steel | 0.42 A | 300 mm | Round | 3.7 lbs | 1.7 kg | IP44 | 4 Wire Leads | 1500 RPM | Ball | 230 VAC | 96 W | CCC CE EAC UL | Capacitor Thermal Overload Protection (TOP) | 73.4 mm | 50 °C | -25 °C | -25 °C | 50 °C | 0.241 in H2O | 60 Pa | Tubeaxial |
