ECC.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8POS GOLD CRIMP

Part	Color	Contact Finish - Mating	Mounting Type	Connector Type	Shell Size - Insert	Shell Finish	Shell Material	Termination	Mounting Feature	Material Flammability Rating	Orientation	Number of Positions	Fastening Type	Insert Material	Current Rating (Amps)	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Ingress Protection	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ECC.1B.308.CYM	Silver	Gold	Panel Mount	Receptacle Female Sockets	308	Chrome	Brass	Crimp	Front and Rear Side Nut	UL94 V-0	C	8	Push-Pull	Polyetheretherketone (PEEK)	5 A	Metal	-55 C	250 °C	Bronze	IP50 - Dust Protected	Shielded	1.5 Ám	59 Áin

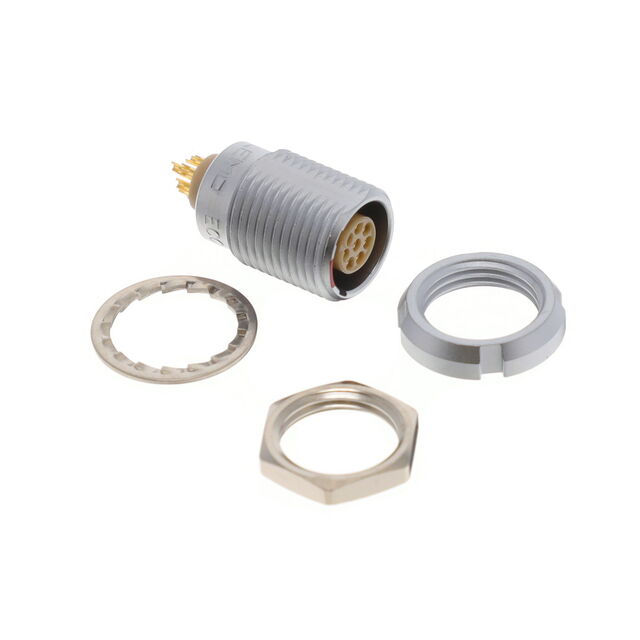

LEMO ECC.1B.308.CLL	Silver	Gold	Panel Mount	Receptacle Female Sockets	308	Chrome	Brass		Front and Rear Side Nut	UL94 V-0	C	8	Push-Pull	Polyetheretherketone (PEEK)	5 A	Metal	-55 C	250 °C	Bronze	IP50 - Dust Protected	Shielded	1.5 Ám	59 Áin
LEMO ECC.1B.308.CLN	Silver	Gold	Panel Mount Through Hole	Receptacle Female Sockets	308	Chrome	Brass	Solder	Front and Rear Side Nut	UL94 V-0	C	8	Push-Pull	Polyetheretherketone (PEEK)	5 A	Metal	-55 C	250 °C	Bronze	IP50 - Dust Protected	Shielded	1.5 Ám	59 Áin
