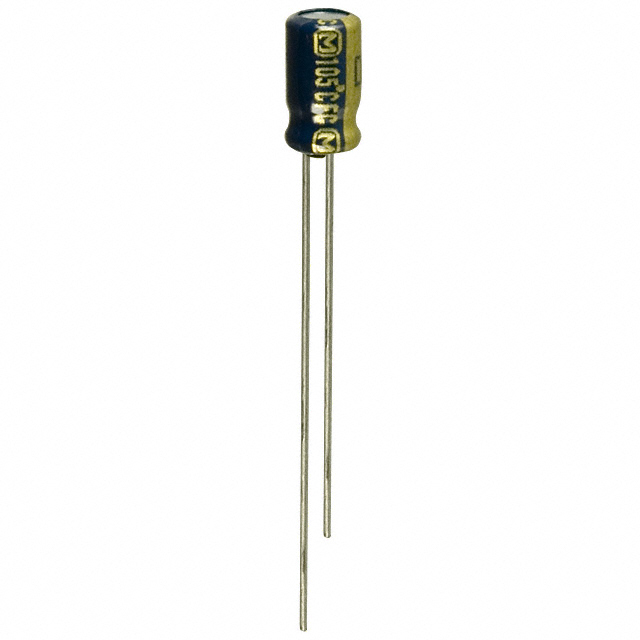

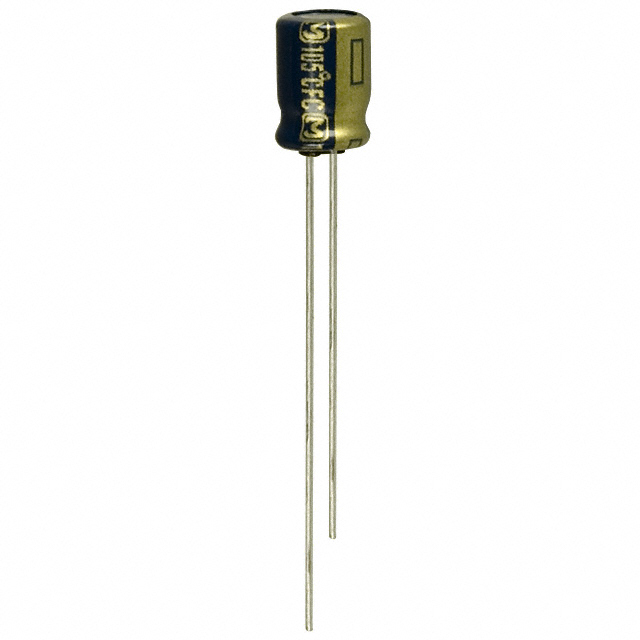

FC Series

Manufacturer: Panasonic Electronic Components

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED AL LYTIC CAP 105C RADIAL FC SERIES

Part	Tolerance	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Applications	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Lifetime @ Temp.	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components EEA-FC1C150	20 %	Through Hole	2 Ohms	-55 C	105 ░C	AEC-Q200	Automotive	Polar	8 mm	0.315 in	15 µF	16 V	4 mm	0.157 in	65 mA	0.059 in	1.5 mm	42.25 mA	1000 Hrs	Can Radial
Panasonic Electronic Components EEE-FC1C681AP	20 %	Surface Mount	150 mOhms	-40 C	105 ░C	AEC-Q200	Automotive High Temperature Reflow	Polar	10.2 mm	0.402 in	680 µF	16 V	10 mm	0.394 in				502.5 mA	1000 Hrs	Radial Can - SMD	0.406 "	0.406 in	10.3 mm	10.3 mm
Panasonic Electronic Components EEE-FC0J221AP	20 %	Surface Mount	400 mOhms	-40 C	105 ░C	AEC-Q200	Automotive High Temperature Reflow	Polar			220 µF	6.3 VDC	8 mm	0.315 in	230 mA			172.5 mA	1000 Hrs	Radial Can - SMD	0.327 in	0.327 in	8.3 mm	8.3 mm	0.244 in	6.2 mm
Panasonic Electronic Components EEU-FC2A101L	20 %	Through Hole	150 mOhms	-55 C	105 ░C	AEC-Q200	Automotive	Polar			100 µF	100 V	10 mm	0.394 in	698 mA	0.197 "	5 mm	453.7 mA	3000 Hrs	Can Radial					1.181 "	30 mm
Panasonic Electronic Components EEU-FC1H271B	20 %	Through Hole	82 mOhms	-55 C	105 ░C	AEC-Q200	Automotive	Polar	27 mm	1.063 in	270 µF	50 VDC	10 mm	0.394 in	1.2 A	0.197 "	5 mm	780 mA	3000 Hrs	Can Radial
Panasonic Electronic Components EEU-FC1J121	20 %	Through Hole	194 mOhms	-55 C	105 ░C	AEC-Q200	Automotive	Polar			120 µF	63 V	10 mm	0.394 in	600 mA	0.197 "	5 mm	390 mA	3000 Hrs	Can Radial					0.63 in	16 mm
Panasonic Electronic Components EEU-FC1H102B	20 %	Through Hole	34 mOhms	-55 C	105 ░C	AEC-Q200	Automotive	Polar	27 mm	1.063 in	1000 µF	50 VDC	16 mm	0.63 in	2.235 A	0.295 in	7.5 mm	1.676 A	5000 Hrs	Can Radial
Panasonic Electronic Components EEU-FC1E331	20 %	Through Hole		-55 C	105 ░C	AEC-Q200	Automotive	Polar	0.492 in		330 µF	25 VDC	10 mm	0.394 in	755 mA	0.197 "	5 mm	490.8 mA	3000 Hrs	Can Radial							12.5 mm
Panasonic Electronic Components EEE-FC1V330AP	20 %	Surface Mount	400 mOhms	-40 C	105 ░C	AEC-Q200	Automotive High Temperature Reflow	Polar			33 ÁF	35 V	8 mm	0.315 in	230 mA			172.5 mA	1000 Hrs	Radial Can - SMD	0.327 in	0.327 in	8.3 mm	8.3 mm	0.244 in	6.2 mm
Panasonic Electronic Components EEE-FC1V3R3AR	20 %	Surface Mount	3 Ohms	-40 C	105 ░C	AEC-Q200	Automotive High Temperature Reflow	Polar	5.4 mm	0.213 in	3.3 µF	35 V	4 mm	0.157 in	60 mA			45 mA	1000 Hrs	Radial Can - SMD	0.169 in	0.169 "	4.3 mm	4.3 mm
