K86X-ED Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB HD PLUG 15P VERT SLDR
| Part | Voltage Rating | Color | Dielectric Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Features | Connector Style | Termination | Mounting Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Current Rating (Amps) | Contact Type | Contact Finish | Material Flammability Rating | Number of Positions | Contact Finish Thickness | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

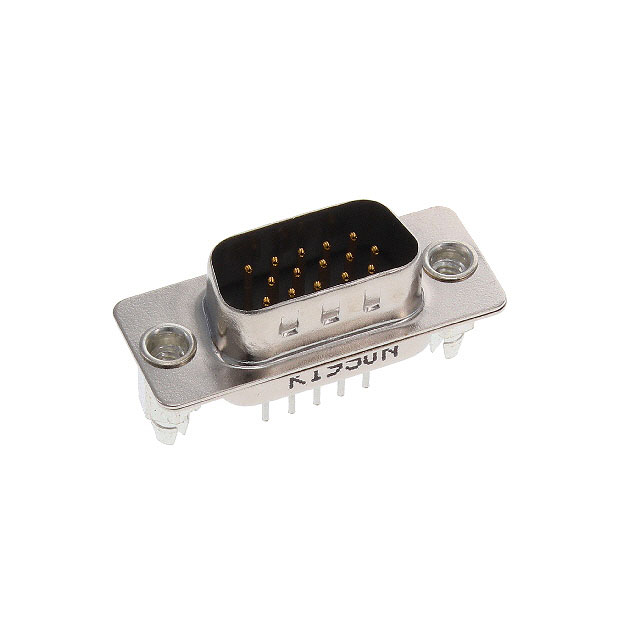

 Kycon, Inc. | 30 VAC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | -55 C | 105 ░C | Brass | Board Lock Grounding Indents | D-Sub High Density | Solder | Through Hole | Plug Male Pins | (DE E) High Density | 1 | 3 | 1.5 A | Signal | Gold | UL94 V-0 | 15 | Flash | Board Side (4-40) Mating Side Female Screwlock (4-40) | Nickel Plated Steel | ||

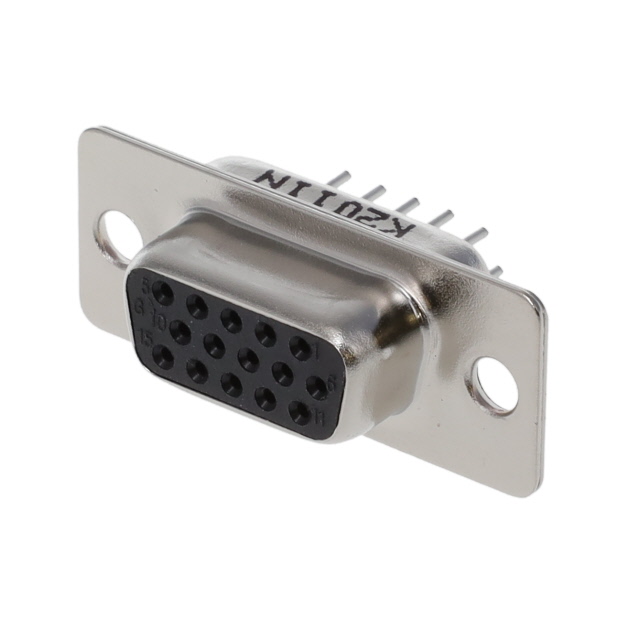

 Kycon, Inc. | 30 VAC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | -55 C | 75 ░C | Brass | D-Sub High Density | Solder | Through Hole | Receptacle Female Sockets | (DE E) High Density | 1 | 3 | 1.5 A | Signal | Gold | UL94 V-0 | 15 | Flash | Housing/Shell (Unthreaded) | Nickel Plated Steel | |||

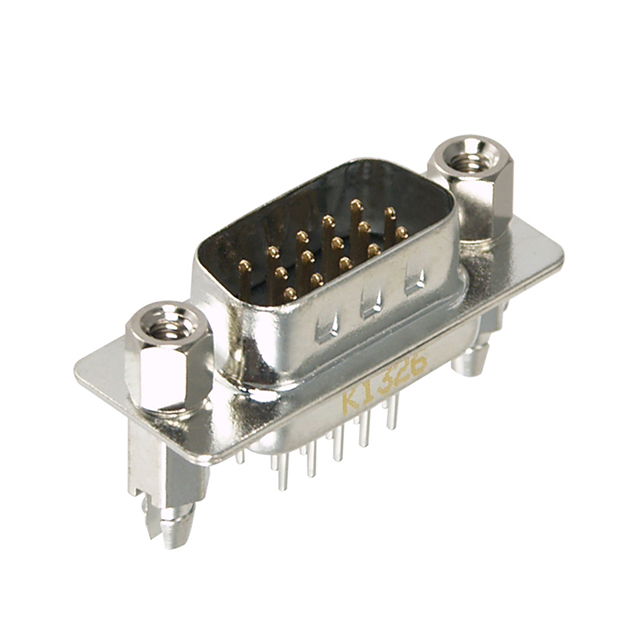

 Kycon, Inc. | 30 VAC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | -55 C | 105 ░C | Brass | Board Lock Grounding Indents | D-Sub High Density | Solder | Through Hole | Plug Male Pins | (DE E) High Density | 1 | 3 | 1.5 A | Signal | Gold | UL94 V-0 | 15 | Flash | Board Side (4-40) | Nickel Plated Steel | ||
 Kycon, Inc. | 30 VAC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | -55 C | 105 ░C | Brass | Grounding Indents | D-Sub High Density | Solder | Through Hole | Plug Male Pins | (DE E) High Density | 1 | 3 | 1.5 A | Signal | Gold | UL94 V-0 | 15 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 30 Áin | 0.76 Ám |
