2202 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Part	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Current - IEC	Type	Color	Number of Positions	Voltage - IEC	Termination Style	Voltage - UL	Number of Levels	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

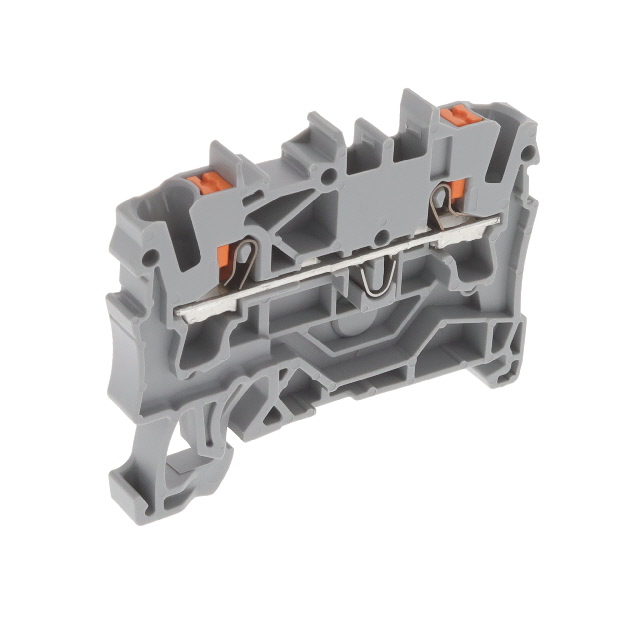

WAGO Corporation 2202-1201	Nylon 6/6 Polyamide (PA66)	10 mm	12 mm	4 mm²	0.75 mm²	20 A	32 A	Feed Through	Gray	2	800 V	Push In Spring	600 V	1	5.2 mm	12 AWG	18 AWG

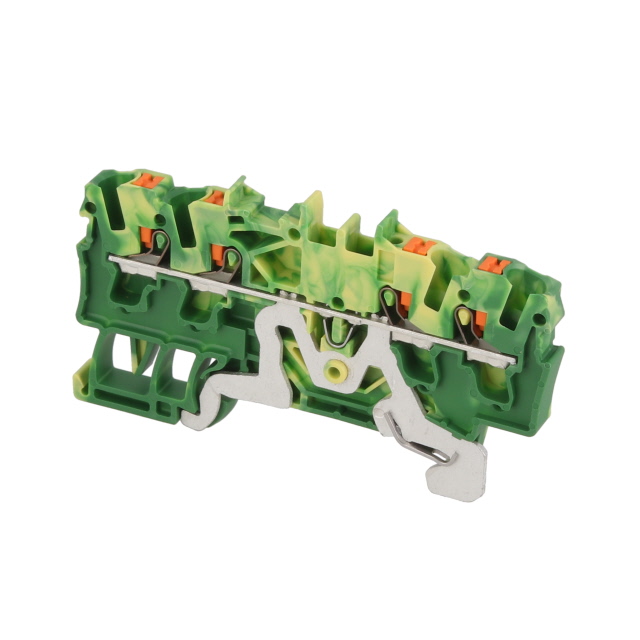

WAGO Corporation 2202-1407	Nylon 6/6 Polyamide (PA66)	10 mm	12 mm	4 mm²	0.75 mm²			Ground Earth	Green Yellow	4		Push In Spring		1	5.2 mm	12 AWG	18 AWG	4 mm˛	0.75 mm˛
