0376-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN OFP PIN RCPT .065/.082" DIA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Hole Diameter	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material

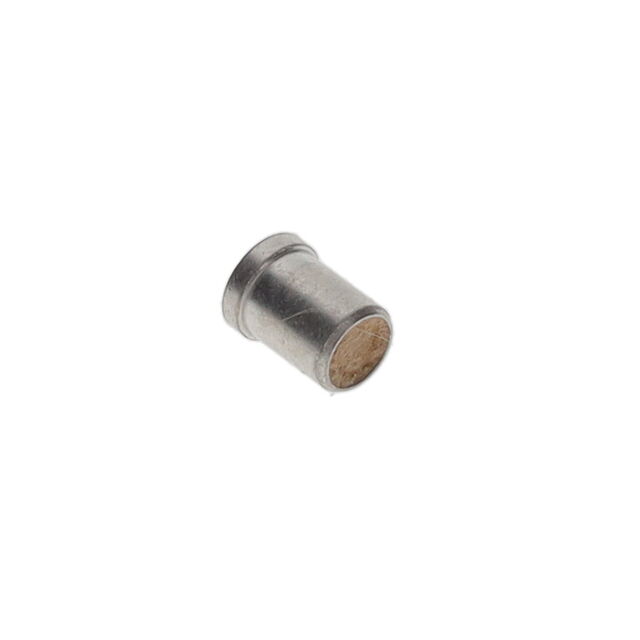

Mill-Max Manufacturing Corp. 0376-0-43-80-07-27-10-0	-55 C	125 °C	Knockout Bottom (Organic Fiber Plug®)	3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail	Gold	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm	2.72 mm	0.107 in	Solder	4.6 mm	0.181 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0376-0-15-80-07-80-10-0	-55 C	125 °C		3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail	Tin	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm			Solder	4.6 mm	0.181 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0376-0-15-01-07-01-10-0	-55 C	125 °C		3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail		2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm			Solder	4.6 mm	0.181 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0376-0-15-80-07-27-10-0	-55 C	125 °C		3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail	Gold	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm			Solder	4.6 mm	0.181 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0376-0-15-15-07-14-10-0	-55 C	125 °C		3.38 mm	0.133 in	0.181 in	4.6 mm	10 Áin	0.25 Ám	No Tail	Gold	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm			Solder	4.6 mm	0.181 in	Beryllium Copper

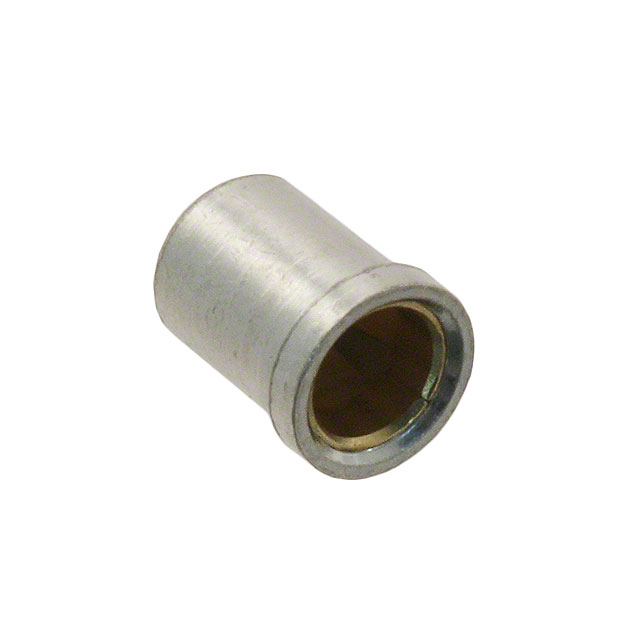

Mill-Max Manufacturing Corp. 0376-0-67-80-07-27-10-0	-55 C	125 °C	Knockout Bottom (Organic Fiber Plug®)	3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail	Gold	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm	2.72 mm	0.107 in	Solder	4.6 mm	0.181 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0376-0-15-15-07-27-10-0	-55 C	125 °C		3.38 mm	0.133 in	0.181 in	4.6 mm	30 Áin	0.76 Ám	No Tail	Gold	2.08 mm	0.082 "	0.065 "	1.65 mm	0.14 in	3.56 mm			Solder	4.6 mm	0.181 in	Beryllium Copper
