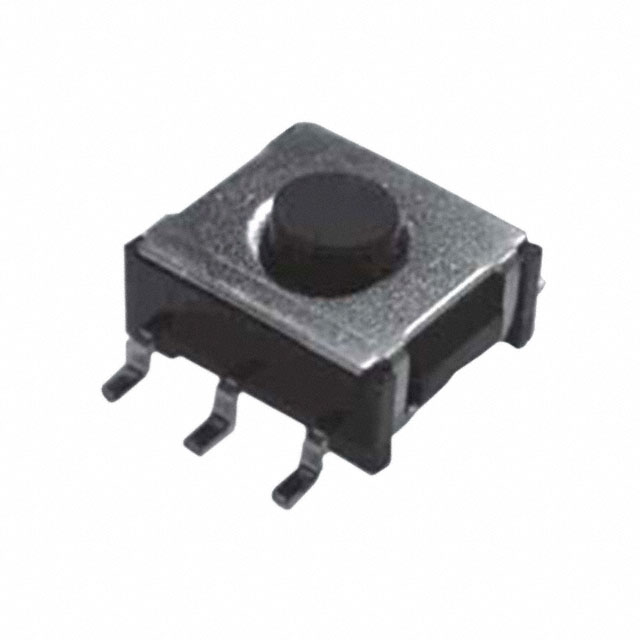

SMTG1 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Actuator Orientation	Actuator Type	Switch Travel	Operating Force	Circuit	Actuator Height off PCB, Vertical [z]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Outline [x]	Outline [y]	Switch Function	Illumination	Mounting Type	Contact Rating @ Voltage
Nidec Components Corporation SMTG1-01-Z	Top Actuated	Standard	0.5 mm	200 gf	SPST-NO	4 mm	100000 Cycles	70 °C	-25 °C	Gull Wing	7.5 mm	6.5 mm	Off-Mom	Non-Illuminated	Surface Mount	0.05 A 48 VDC
Nidec Components Corporation SMTG1-01E-Z	Top Actuated	Standard	0.5 mm	200 gf	SPST-NO	4 mm	100000 Cycles	70 °C	-25 °C	Gull Wing	7.5 mm	6.5 mm	Off-Mom	Non-Illuminated	Surface Mount	0.05 A 48 VDC
