G9TA-U Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 60A 12V
| Part | Mounting Type | Coil Type | Coil Resistance | Coil Voltage | Contact Material | Contact Rating (Current) | Load - Max Switching | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Switching Voltage | Coil Current | Relay Type | Release Time | Must Operate Voltage | Termination Style | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

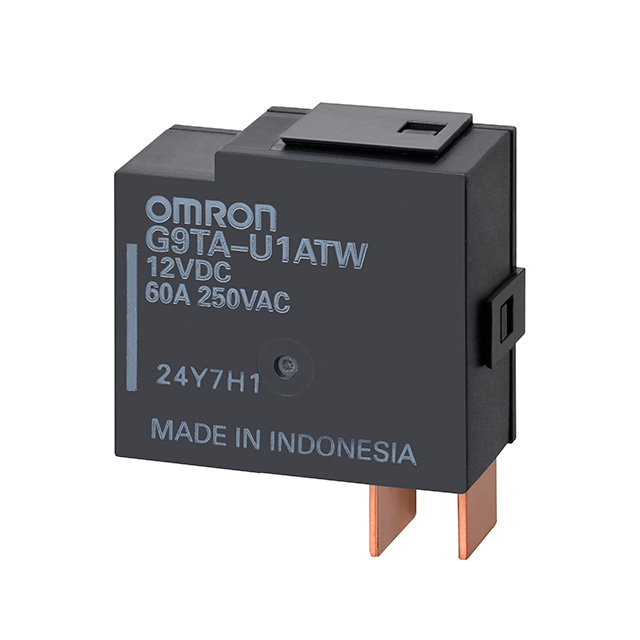

 Omron Electronics Inc-EMC Div | Free Hanging | Latching Single Coil | 145 Ohms | 12 VDC | Silver Alloy | 60 A | 15000 VA | 30 ms | 85 °C | -40 °C | SPST-NO (1 Form A) | 250 VAC | 83 mA | General Purpose | 30 ms | 9.6 VDC | PC Pin Weld Terminal | |

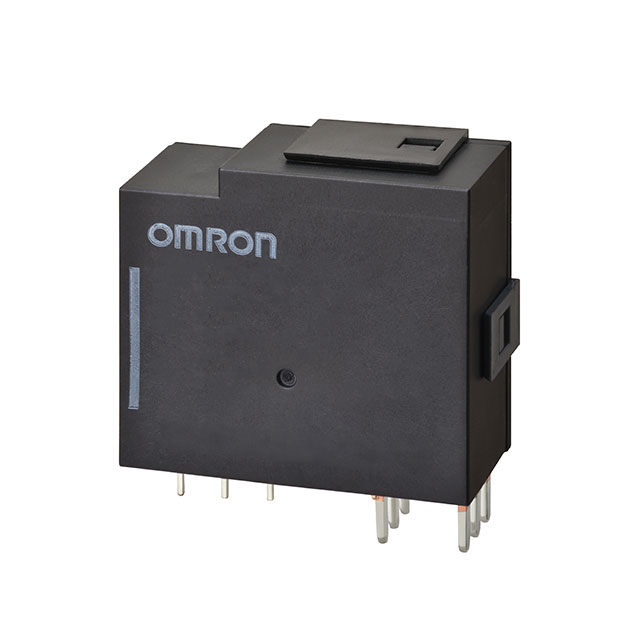

 Omron Electronics Inc-EMC Div | Through Hole | Latching Single Coil | 145 Ohms | 12 VDC | Silver Alloy | 60 A | 15000 VA | 30 ms | 85 °C | -40 °C | SPST-NO (1 Form A) | 250 VAC | 83 mA | General Purpose | 30 ms | 9.6 VDC | PC Pin | Sealed - Flux Protection |
