P70-50000 Series
Manufacturer: Harwin Inc.
Beta
⌘K

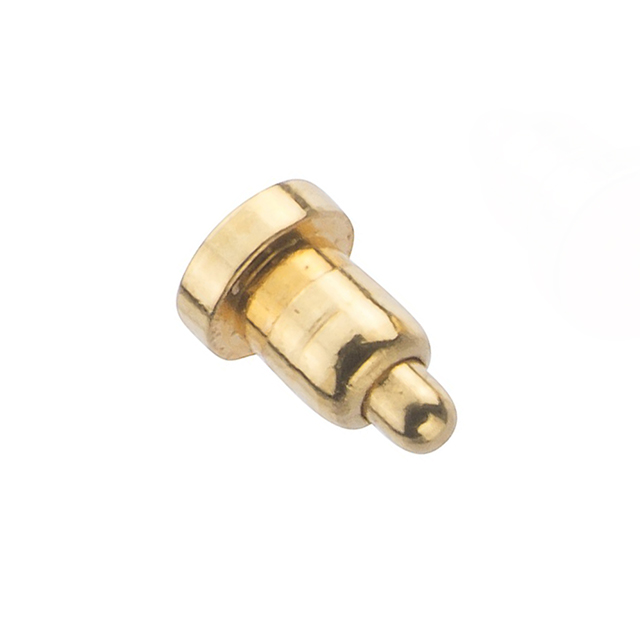

SPRING LOADED CONTACT, PIN, 2.4MM, SMT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Contact Material | Contact Type | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 10000 | Brass | Sleeve & Plunger (Pogo Pins) | 1.9 mm | 0.075 in | 0.079 in | 2 mm | Gold | 16 µin | 0.41 µm | Surface Mount | 0.6 mm | 0.024 in | 69.34 gf | 1.7 mm | 0.067 " | Circular | 1.85 mm | 0.073 " |
