SH08 Series

Catalog

PCBPLUG 8P 350MM HORIZONTAL 11A

Part	Contact Mating Finish	Current - IEC	Voltage - UL	Number of Levels	Positions Per Level	Termination Style	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Voltage - IEC	Operating Temperature (Min)	Operating Temperature (Max)	Plug Wire Entry Angle	Features	Type	Color	Pitch	Mounting Type	Operating Temperature	Screw Size	Torque - Screw	Insulation Height	Wire Strip Length	Housing Material	Contact Material	Material Flammability Rating	Wire Gauge or Range - mm²
Altech Corporation SH08-3,50-K	Nickel	8 A	300 V	1	8	Screw - Rising Cage Clamp	2.5 mm²	0.05 mm²	11 A	30 AWG	14 AWG	8	160 V	-30 °C	105 °C	180 °	Mating Flange	Female Sockets Plug	Green	0.138 in	Free Hanging (In-Line)
Altech Corporation SH08-7,50	Nickel	16 A	300 V	1	8	Screw - Rising Cage Clamp	2.5 mm²	0.05 mm²	12 A	30 AWG	14 AWG	8	750 V			180 °	Retention Latches (Non-Wire Side)	Female Sockets Plug	Green	0.295 in	Free Hanging (In-Line)	105 °C
Altech Corporation SH08-3,81-K	Nickel	8 A	300 V	1	8	Screw - Leaf Spring Wire Guard	1.5 mm²	0.25 mm²	11 A	30 AWG	14 AWG	8	160 V	-30 °C	105 °C	180 °	Mating Flange	Female Sockets Plug	Green	0.15 in	Free Hanging (In-Line)
Altech Corporation SH08-5,08	Nickel	16 A	300 V	1	8	Screw - Rising Cage Clamp			12 A	30 AWG	14 AWG	8	450 V			180 °	Retention Latches (Non-Wire Side)	Female Sockets Plug	Green	5.08 mm	Free Hanging (In-Line)		M3	0.5 Nm	0.61 in	7.5 mm	Nylon PA Polyamide	Brass	UL94 V-0	2.5 mm²

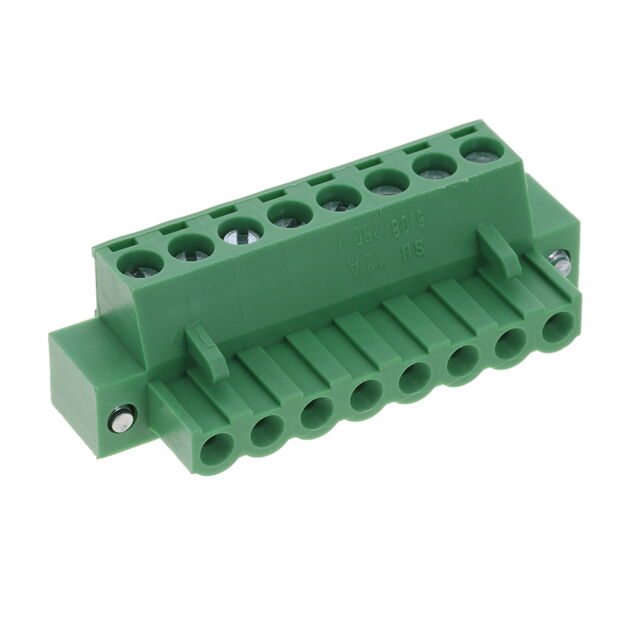

Altech Corporation SH08-5,08-K	Nickel	16 A	300 V	1	8	Screw - Rising Cage Clamp	2.5 mm²	0.05 mm²	12 A	30 AWG	14 AWG	8	450 V			180 °		Male Pins Plug	Green	5.08 mm	Free Hanging (In-Line)	105 °C
Altech Corporation SH08-3,81	Tin	8 A	300 V	1	8	Screw - Rising Cage Clamp			8 A	30 AWG	16 AWG	8	130 V			180 °		Female Sockets Plug	Green	0.15 in	Free Hanging (In-Line)	105 °C								1.5 mm²
Altech Corporation SH08-10,16	Nickel	16 A	300 V	1	8	Screw - Rising Cage Clamp			12 A	30 AWG	14 AWG	8	750 V			180 °	Retention Latches (Non-Wire Side)	Female Sockets Plug	Green	0.4 in	Free Hanging (In-Line)	105 °C								4 mm²
Altech Corporation SH08-10,16-K	Nickel	16 A	600 V	1	8	Screw - Rising Cage Clamp	2.5 mm²	0.05 mm²	12 A	30 AWG	14 AWG	8	750 V			180 °	Mating Flange	Female Sockets Plug	Green	0.4 in	Free Hanging (In-Line)	105 °C
Altech Corporation SH08-3,50	Tin	8 A	300 V	1	8	Screw - Rising Cage Clamp			8 A	30 AWG	16 AWG	8	130 V			180 °		Female Sockets Plug	Green	0.138 in	Free Hanging (In-Line)	105 °C								1.5 mm²
Altech Corporation SH08-5,00	Nickel	16 A	300 V	1	8	Screw - Rising Cage Clamp			12 A	30 AWG	14 AWG	8	450 V			180 °	Retention Latches (Non-Wire Side)	Female Sockets Plug	Green	0.197 in	Free Hanging (In-Line)		M3	0.5 Nm	0.61 in	7.5 mm	Nylon PA Polyamide	Brass	UL94 V-0	2.5 mm²
