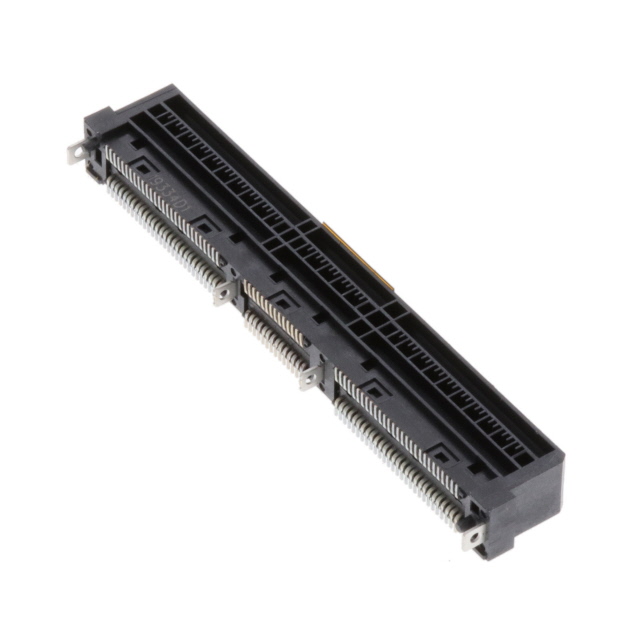

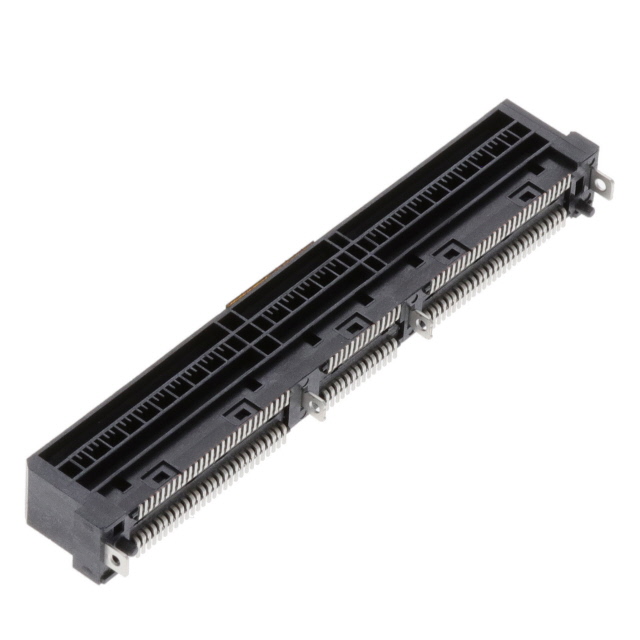

2327677 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog
CONN EDGE DUAL FML 140POS 0.024
| Part | Contact Finish | Material - Insulation | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Gender | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Material | Number of Rows | Card Type | Color | Features | Number of Positions | Card Thickness | Card Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | Liquid Crystal Polymer (LCP) | 28 | 28 | 14 | Female | Dual | 85 °C | -55 °C | Solder | 15 µin | 0.38 µm | 0.6 mm | 0.024 in | Copper Alloy | 2 | Non Specified - Dual Edge | Black | Board Guide Pick and Place Solder Retention | 140 | 0.062 in | 1.57 mm | Surface Mount |
 TE Connectivity Raychem Cable Protection | Gold | Liquid Crystal Polymer (LCP) | 28 | 28 | 14 | Female | Dual | 85 °C | -55 °C | Solder | 30 Áin | 0.76 Ám | 0.6 mm | 0.024 in | Copper Alloy | 2 | Non Specified - Dual Edge | Black | Board Guide Pick and Place Solder Retention | 140 | 0.062 in | 1.57 mm | Surface Mount |
