CSHDD16 Series

Catalog

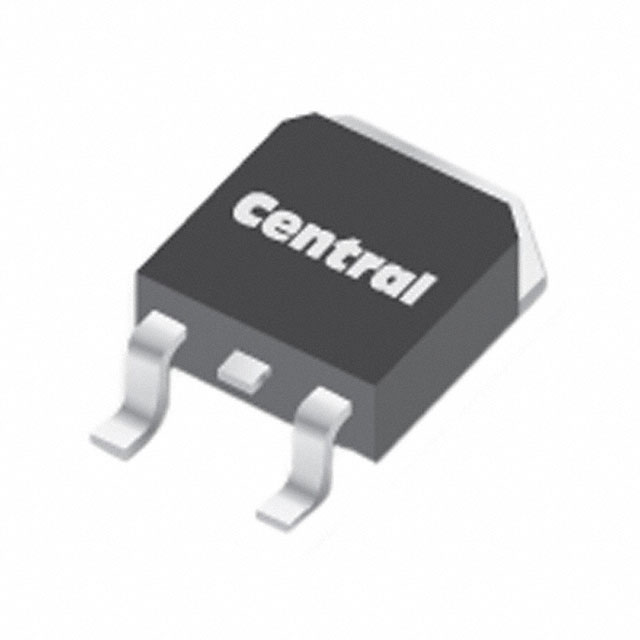

DIODE SCHOTTKY 100V 16A 3-PIN(2+TAB) D2PAK T/R

Part	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Supplier Device Package	Speed
Central Semiconductor Corp CSHDD16-100C TR13 PBFREE	50 µA	100 V	1 Pair Common Cathode	16 A	Schottky	Surface Mount	1.1 V	175 ░C	-65 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	D2PAK	200 mA 500 ns
Central Semiconductor Corp CSHDD16-200C TR13 PBFREE	50 µA	200 V	1 Pair Common Cathode	16 A	Schottky	Surface Mount	1.2 V	175 ░C	-65 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	D2PAK	200 mA 500 ns
