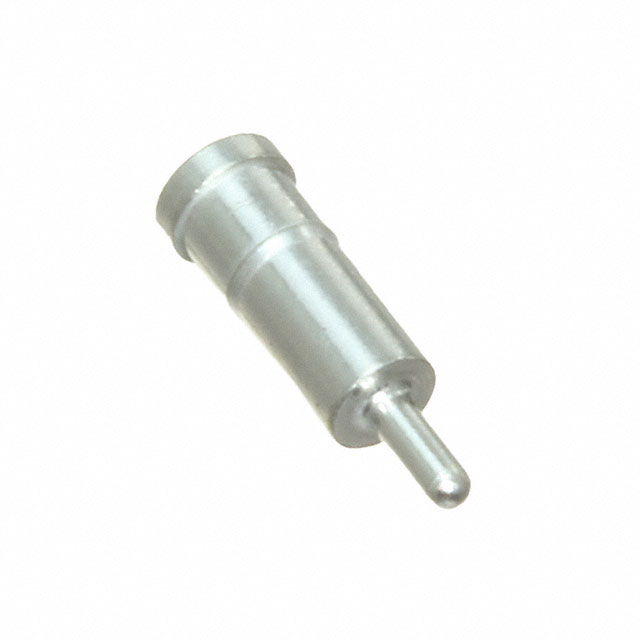

0433-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .040-.060 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Termination	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Length - Overall	Length - Overall	Tail Type	Contact Finish
Mill-Max Manufacturing Corp. 0433-0-15-01-03-01-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	200 Áin	5.08 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Tin-Lead
Mill-Max Manufacturing Corp. 0433-0-15-15-03-14-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	10 Áin	0.25 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Gold
Mill-Max Manufacturing Corp. 0433-0-15-01-03-14-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	10 Áin	0.25 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Gold

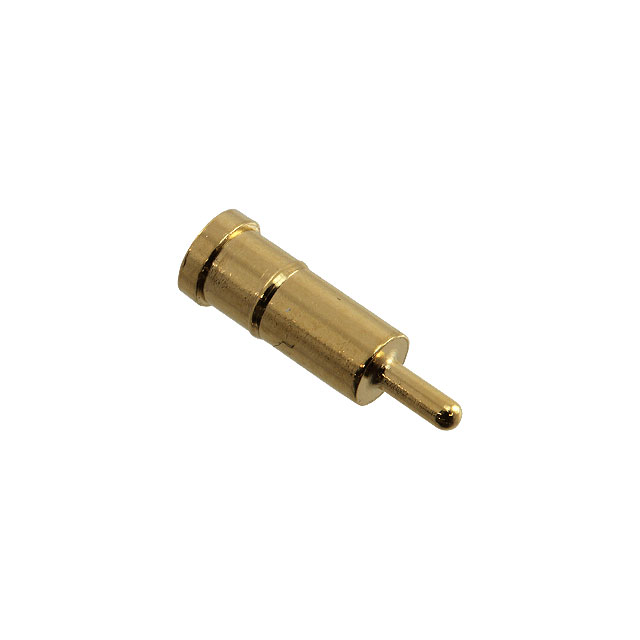

Mill-Max Manufacturing Corp. 0433-0-15-15-03-27-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	30 Áin	0.76 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Gold
Mill-Max Manufacturing Corp. 0433-0-15-80-03-80-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	200 Áin	5.08 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Tin

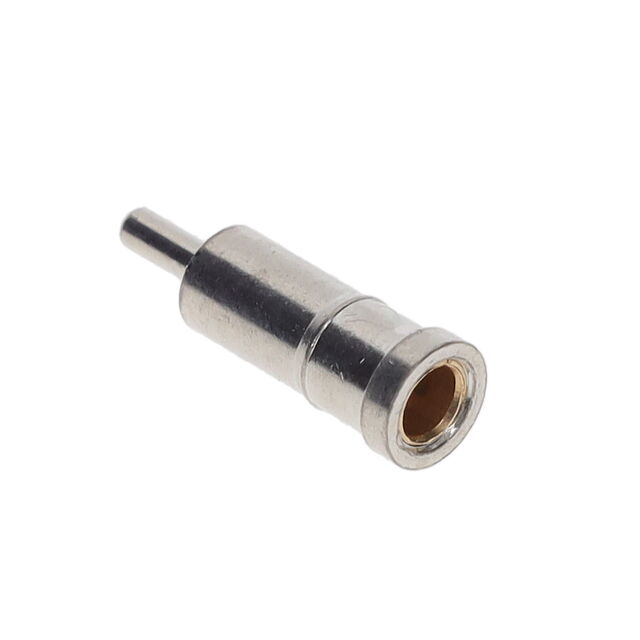

Mill-Max Manufacturing Corp. 0433-0-15-01-03-27-04-0	-55 C	125 °C	5.21 mm	0.205 in	Press-Fit	30 Áin	0.76 Ám	1.98 mm	0.078 in	2.69 mm	0.106 in	0.12 in	3.05 mm	1.02 mm	0.04 "	Beryllium Copper	0.06 in	1.52 mm	0.04 in	1.02 mm	9.91 mm	0.39 in	Standard Tail	Gold
