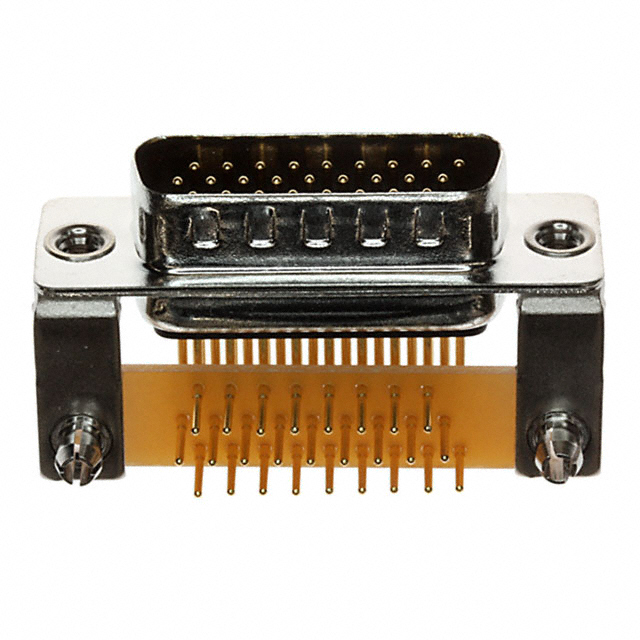

181-M26 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, RIGHT ANGLE, HD26, HIGH DENSITY, RECEPTACLE, 181 M SERIES, 26 CONTACTS, DA, SOLDER
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Contact Finish | Flange Feature | Flange Feature | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Material, Finish | Mounting Type | Contact Finish Thickness | Features | Backset Spacing | Backset Spacing | Contact Type | Connector Type | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Solder | Gold | Housing/Shell | 4-40 | D-Sub High Density | 2 | DA A | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | Board Lock Shielded | 8.89 mm | 0.35 in | Signal | Receptacle Female Sockets | 5 A | UL94 V-0 | 26 | 3 |
 NorComp Inc. | Brass | Polyamide (PA6T) Nylon 6T | -55 C | 105 ░C | Black | Solder | Gold | Housing/Shell (Unthreaded) | D-Sub High Density | 2 | DA A | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | Grounding Indents Shielded | 8.89 mm | 0.35 in | Signal | Plug Male Pins | 5 A | UL94 V-0 | 26 | 3 | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Solder | Gold | Housing/Shell | 4-40 | D-Sub High Density | 2 | DA A | Nickel Plated Steel | Panel Mount Right Angle Through Hole | Flash | Board Lock Grounding Indents Shielded | 8.89 mm | 0.35 in | Signal | Plug Male Pins | 5 A | UL94 V-0 | 26 | 3 |
