TPS560200 Series
Manufacturer: Texas Instruments
Beta
⌘K

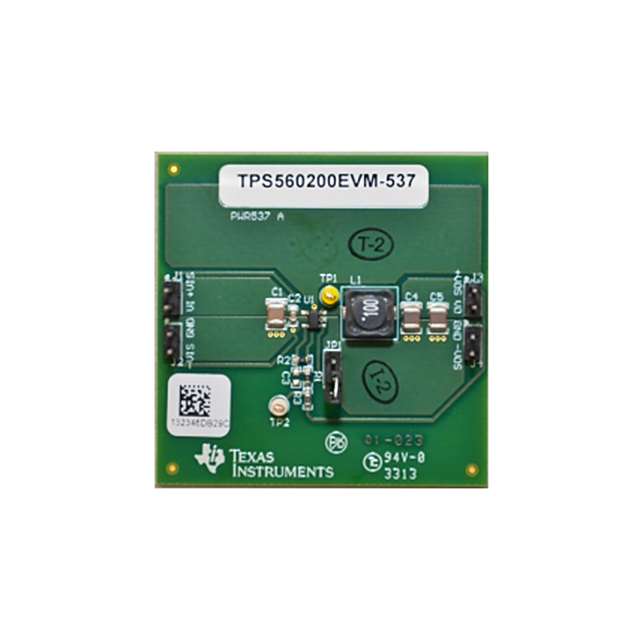

EVAL BOARD FOR TPS560200
| Part | Outputs and Type | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Current - Output | Frequency - Switching | Outputs and Type | Regulator Topology | Voltage - Output | Main Purpose | Board Type | Supplied Contents | Package / Case | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Synchronous Rectifier | Topology | Output Type | Voltage - Input (Max) [Max] | Mounting Type | Output Configuration | Function | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 Non-Isolated Output Non-Isolated | Board(s) | 17 V | 4.5 V | TPS560200 | 500 mA | 600 kHz | 1 | Buck | 1.05 V | DC/DC Step Down | Fully Populated | Board(s) | |||||||||||||||
 Texas Instruments | 500 mA | 600 kHz | SC-74A SOT-753 | 4.5 V | 0.8 V | 6.5 V | -40 °C | 125 ¯C | 1 | Buck | Adjustable | 17 V | Surface Mount | Positive | Step-Down | SOT-23-5 | ||||||||||||
Texas Instruments | 500 mA | 600 kHz | SC-74A SOT-753 | 4.5 V | 0.8 V | 6.5 V | -40 °C | 125 ¯C | 1 | Buck | Adjustable | 17 V | Surface Mount | Positive | Step-Down | SOT-23-5 |
