25098 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

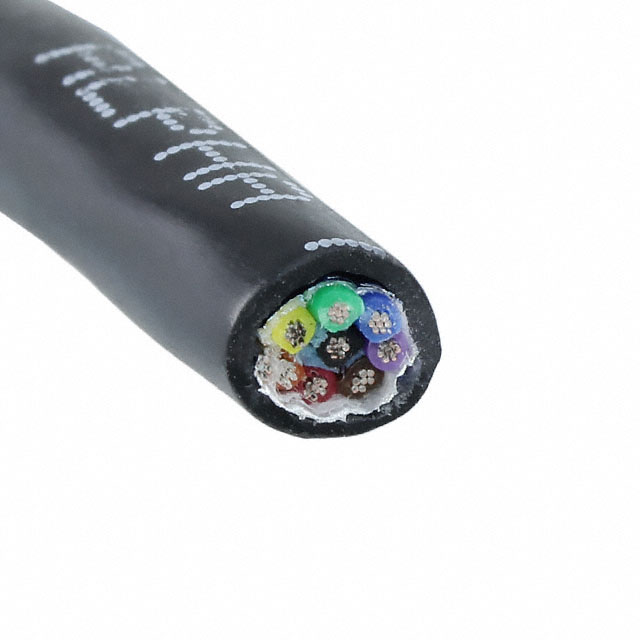

CABLE 8COND 24AWG BLK SHLD FEET
| Part | Shield Coverage | Shield Material | Spool Size [x] | Spool Size [x] | Length | Features | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type | Number of Conductors [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Material | Jacket Color | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) | 0.219 " | 5.56 mm | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 8 | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Foil | Copper Tinned | Black | 300 VDC | ||
 ALPHA WIRE | 100 % | Aluminum | Biological Compatibility Drain Wire Rip Cord | Polyurethane (PU) | 0.219 " | 5.56 mm | 24 AWG | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 8 | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Foil | Copper Tinned | Black | 300 VDC | 100 ft | 30.5 m |
