630-W09 Series
Manufacturer: EDAC Inc.
Beta
⌘K

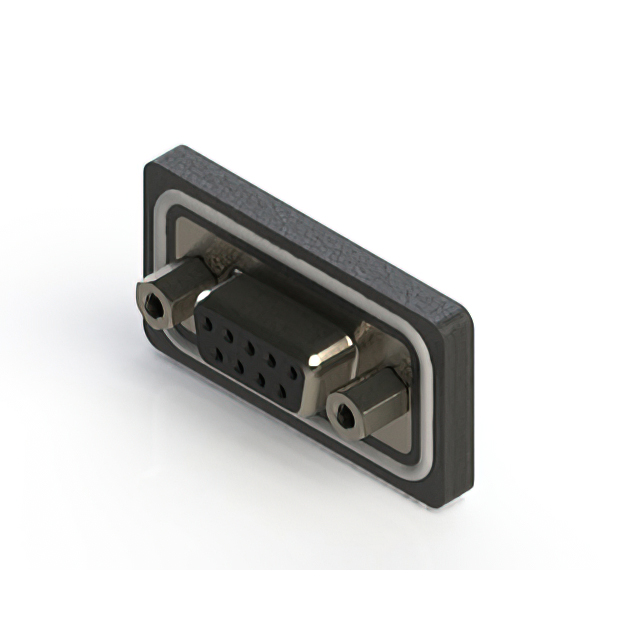

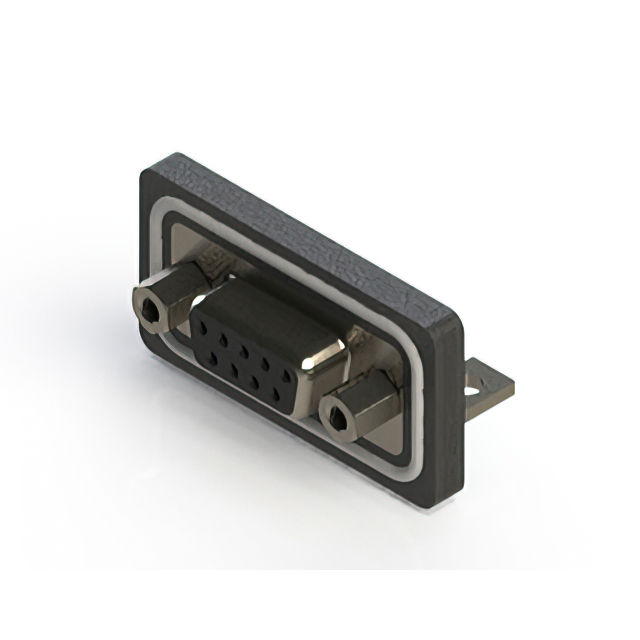

D SUB CONNECTOR, DB9, IP67, STANDARD, RECEPTACLE, 630 SERIES, 9 CONTACTS, DE, SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Contact Material | Mounting Type | Current Rating (Amps) | Features | Connector Type | Backset Spacing | Backset Spacing | Shell Material, Finish | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Number of Positions | Flange Feature | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Ingress Protection | Material Flammability Rating | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Panel Mount Right Angle Through Hole | 5 A | Mounting Brackets | Receptacle Female Sockets | 10.3 mm | 0.406 in | Nickel Plated Steel | Signal | 1 | DE E | Solder | 25 | 4-40 Mating Side Female Screwlock | Flash | D-Sub | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Gold | ||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Panel Mount Right Angle Through Hole | 5 A | Receptacle Female Sockets | 10.3 mm | 0.406 in | Nickel Plated Steel | Signal | 1 | DE E | Solder | 25 | 4-40 Mating Side Female Screwlock | Flash | D-Sub | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Gold | |||
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Right Angle Through Hole | 5 A | Mounting Brackets Shielded | Receptacle Female Sockets | 10.3 mm | 0.406 in | Nickel Plated Steel | Signal | 1 | DE E | Solder | 9 | 4-40 Mating Side Female Screwlock | D-Sub | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Gold | 30 Áin | 0.76 Ám | |
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Right Angle Through Hole | 5 A | Mounting Brackets Shielded | Receptacle Female Sockets | 10.3 mm | 0.406 in | Nickel Plated Steel | Signal | 1 | DE E | Solder | 9 | 4-40 Mating Side Female Screwlock | D-Sub | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Gold | 15 µin | 0.38 µm | |
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Right Angle Through Hole | 5 A | Shielded | Receptacle Female Sockets | 10.3 mm | 0.406 in | Nickel Plated Steel | Signal | 1 | DE E | Solder | 9 | 4-40 Mating Side Female Screwlock | D-Sub | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Gold | 30 Áin | 0.76 Ám |
